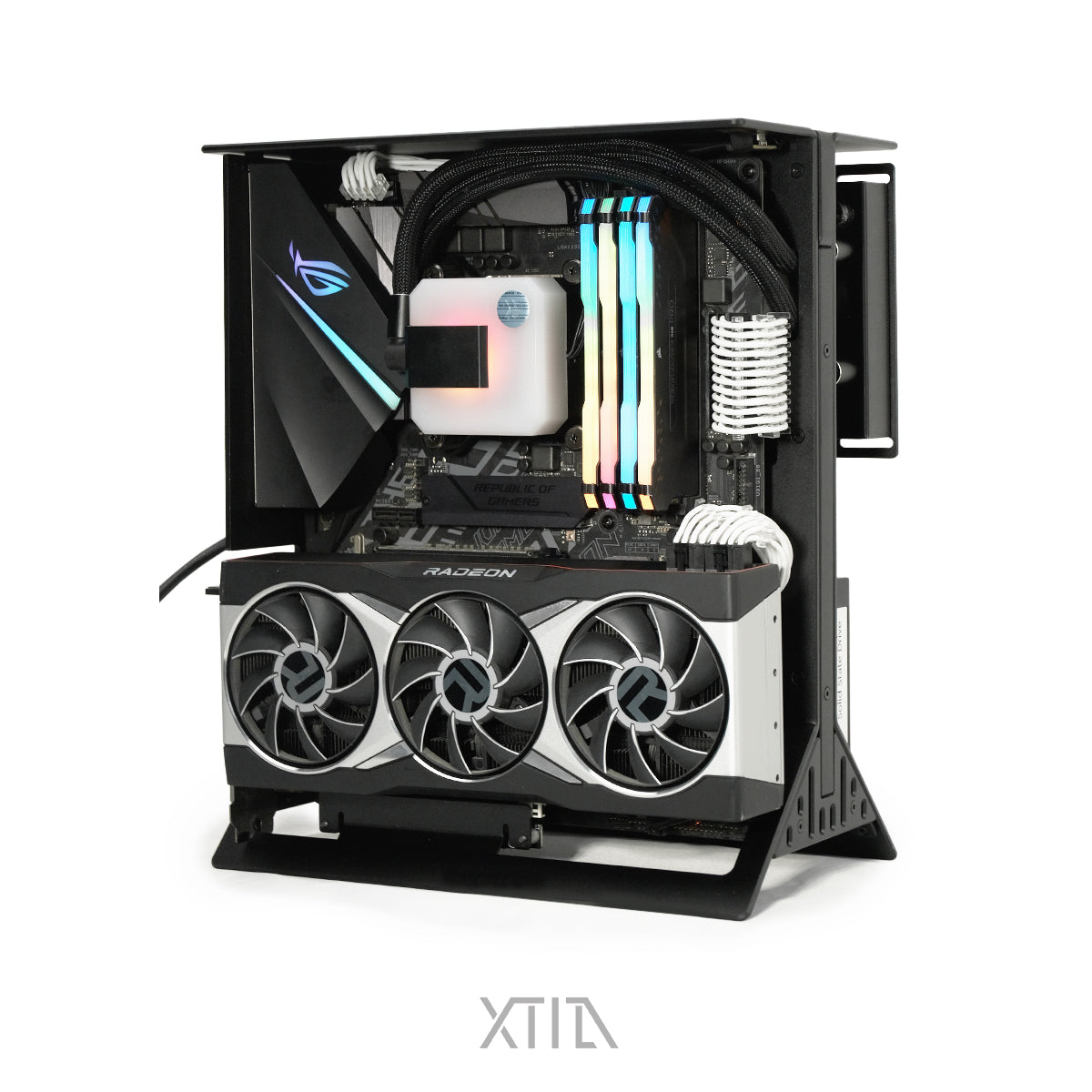

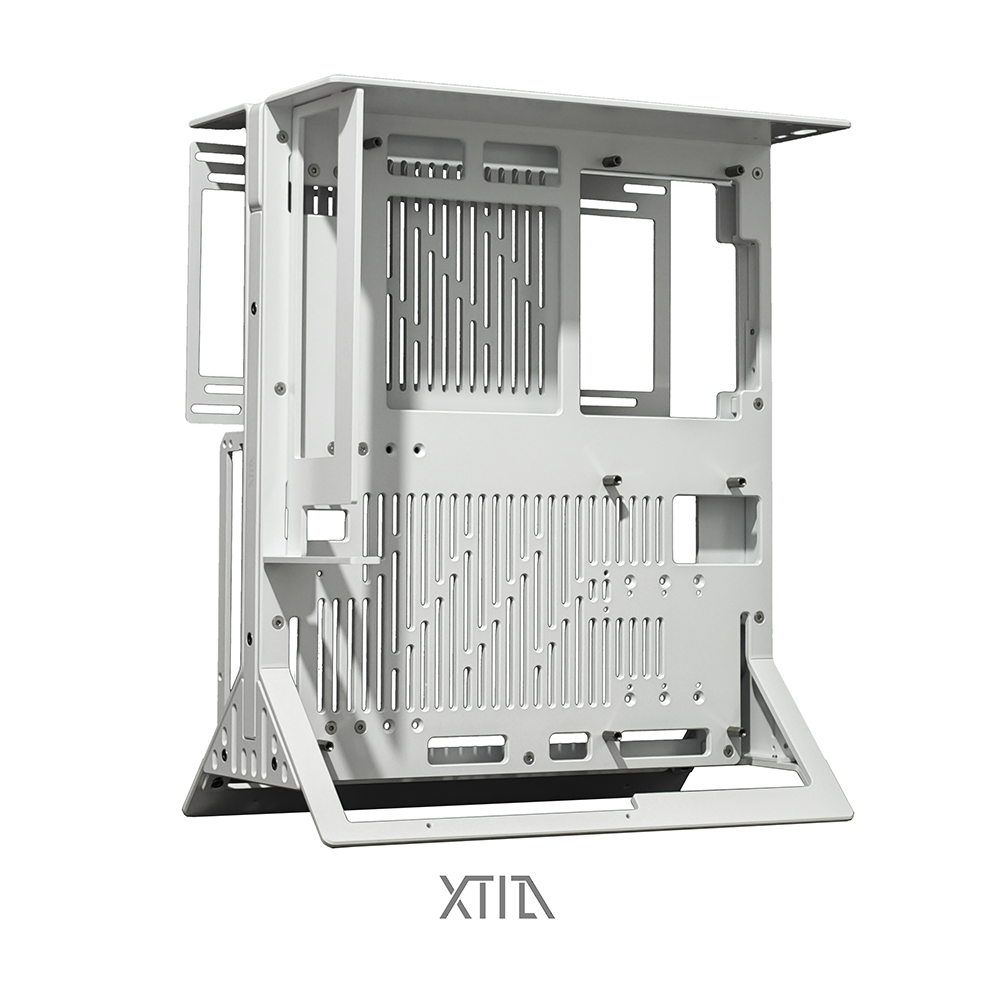

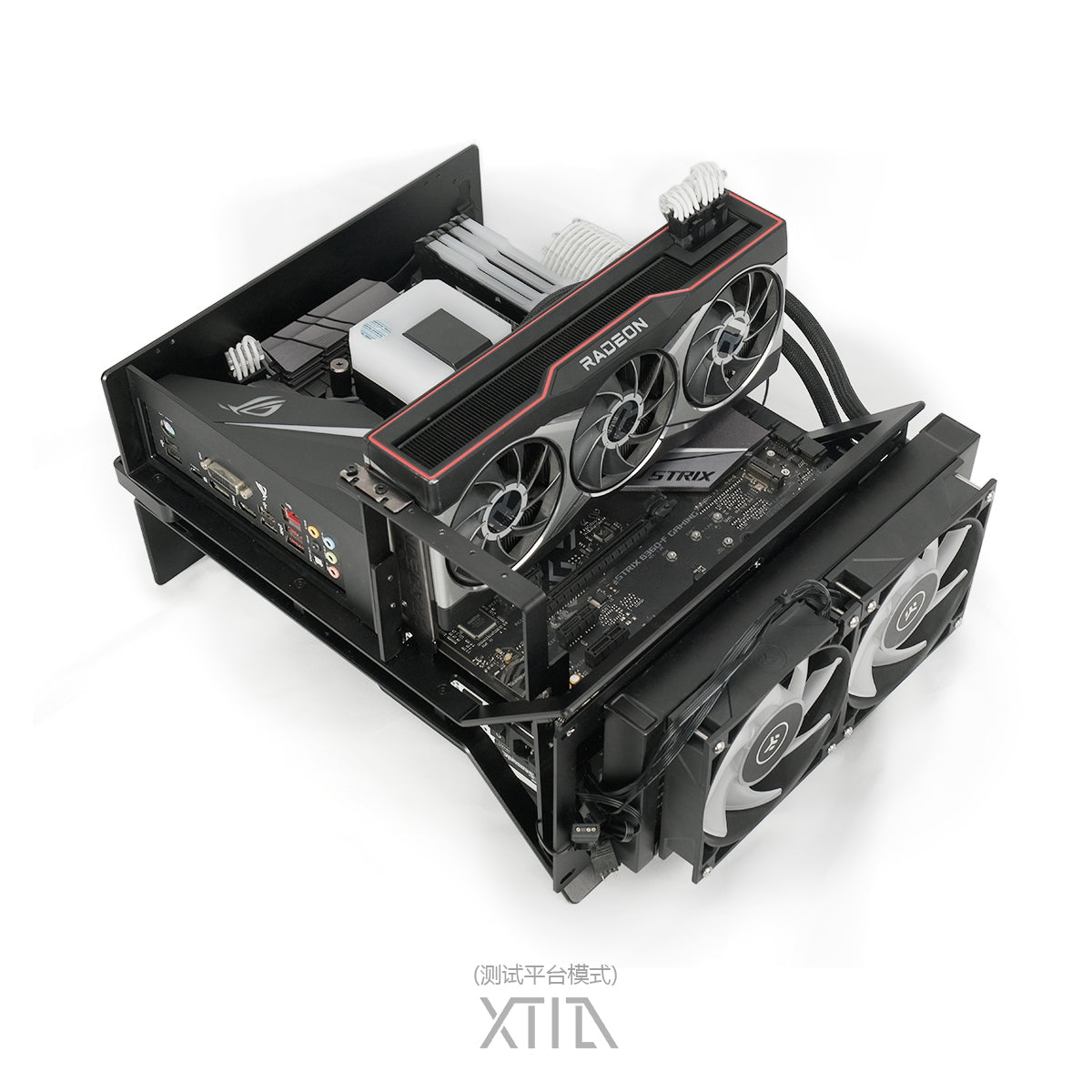

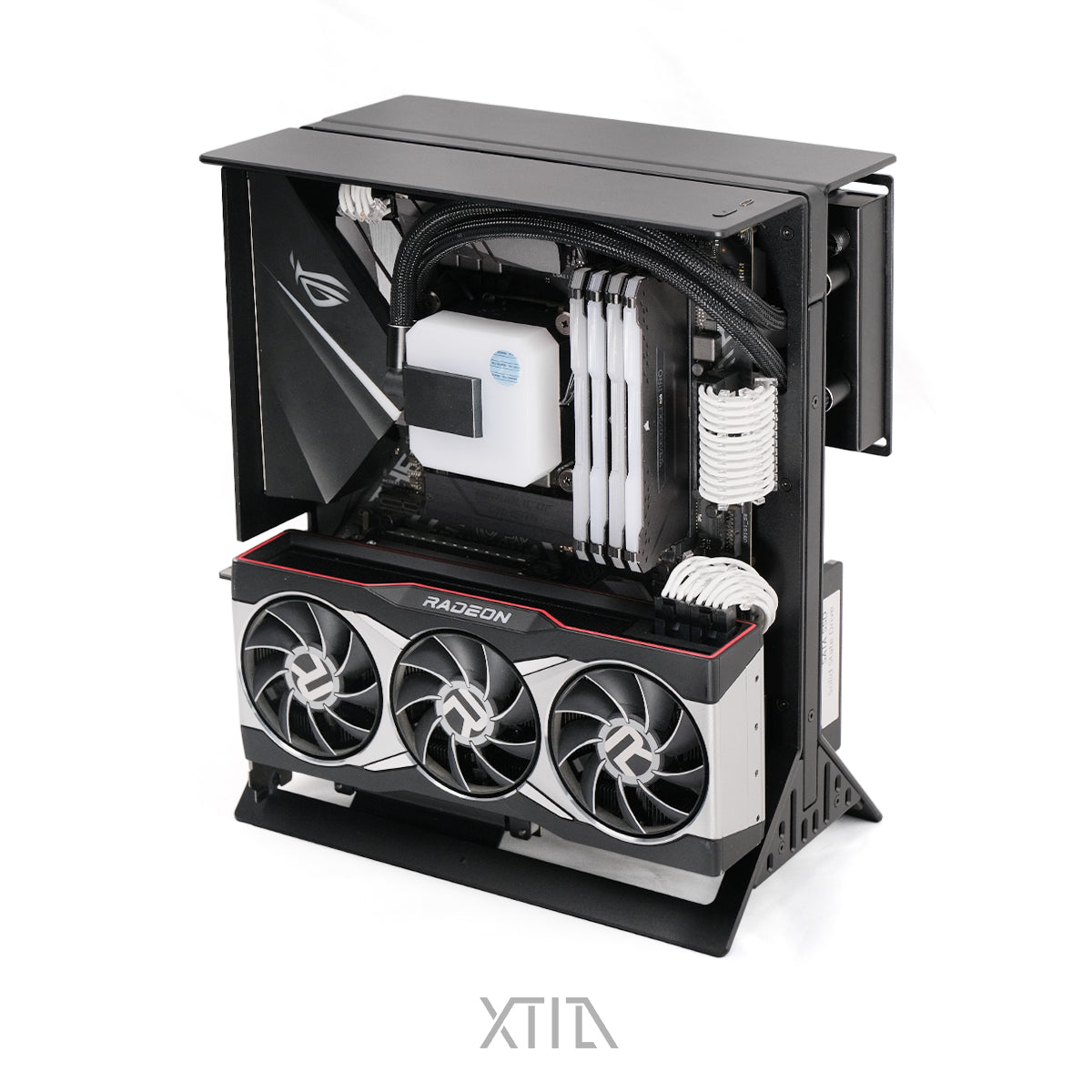

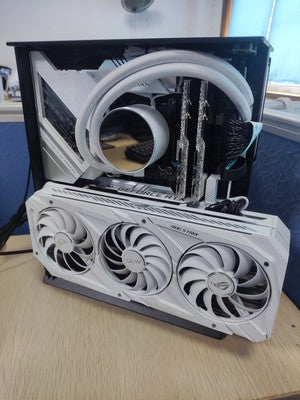

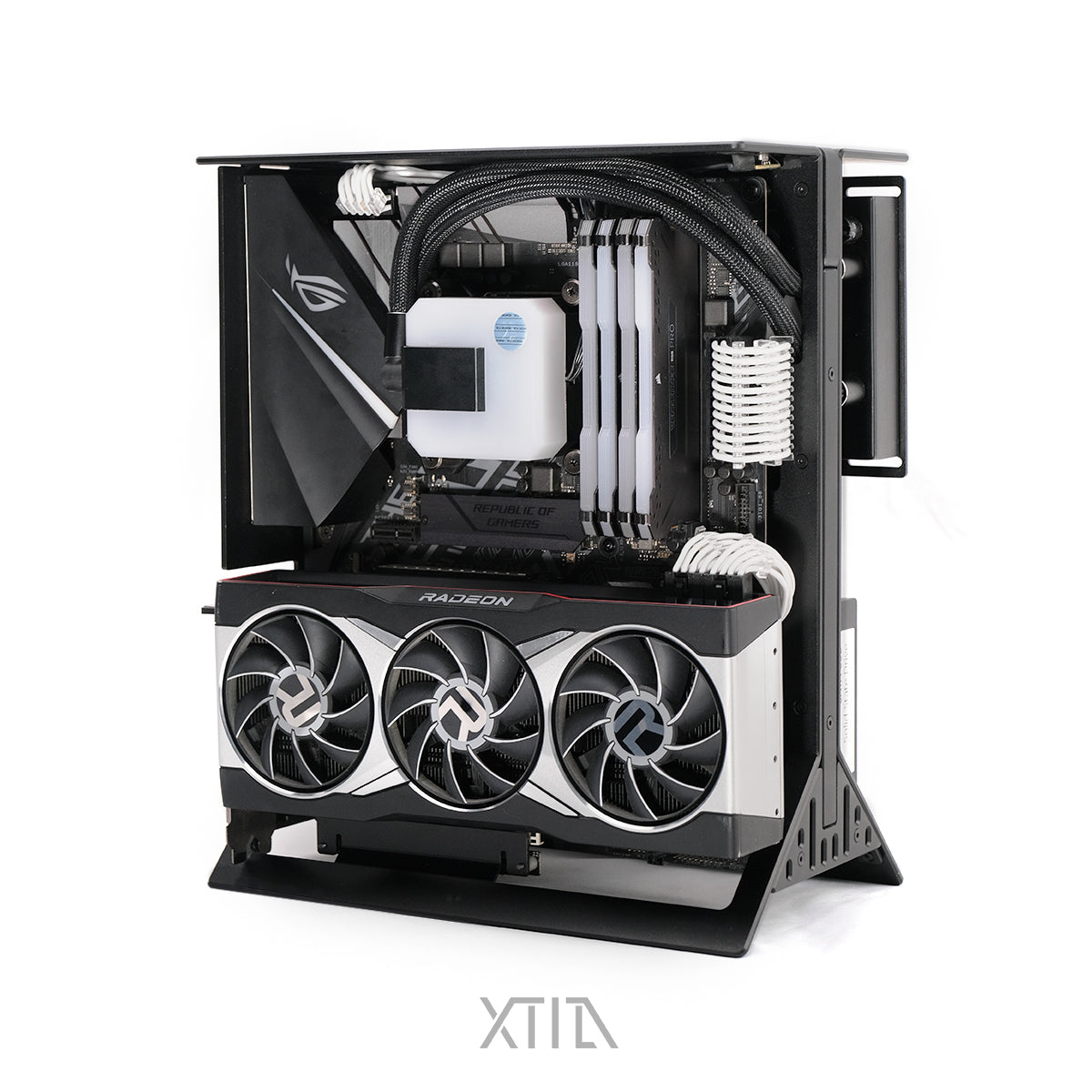

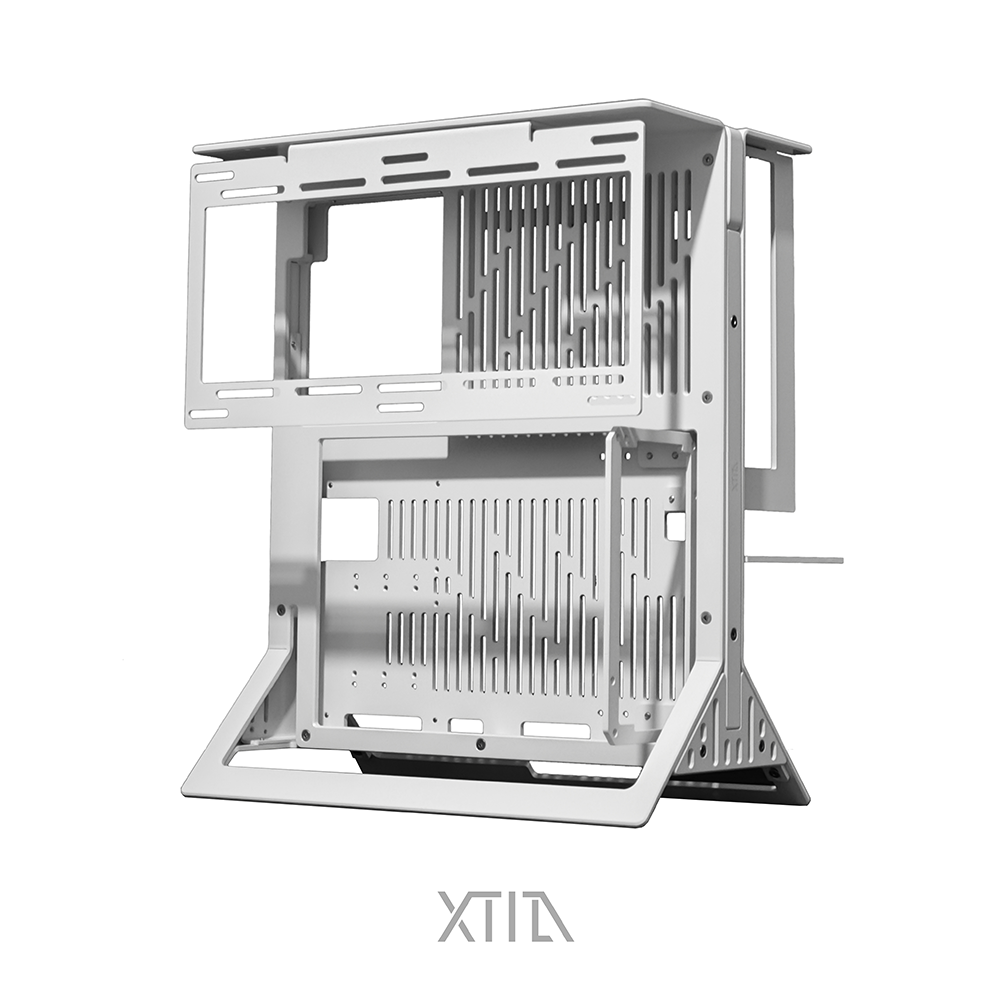

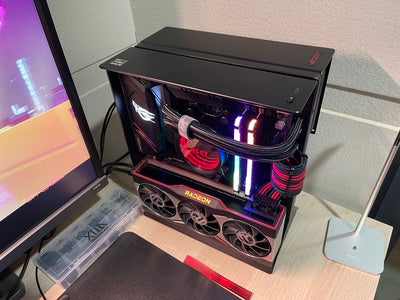

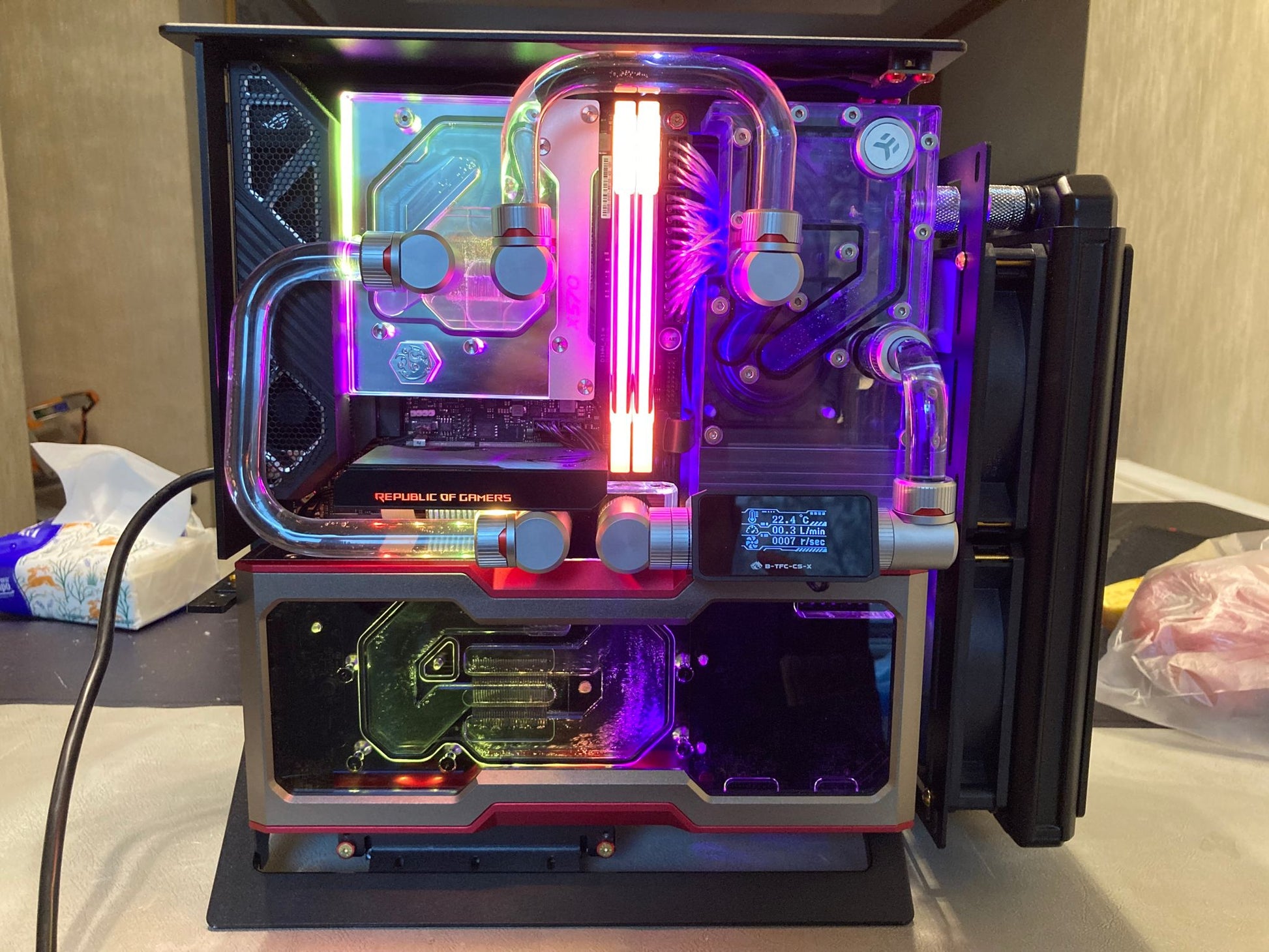

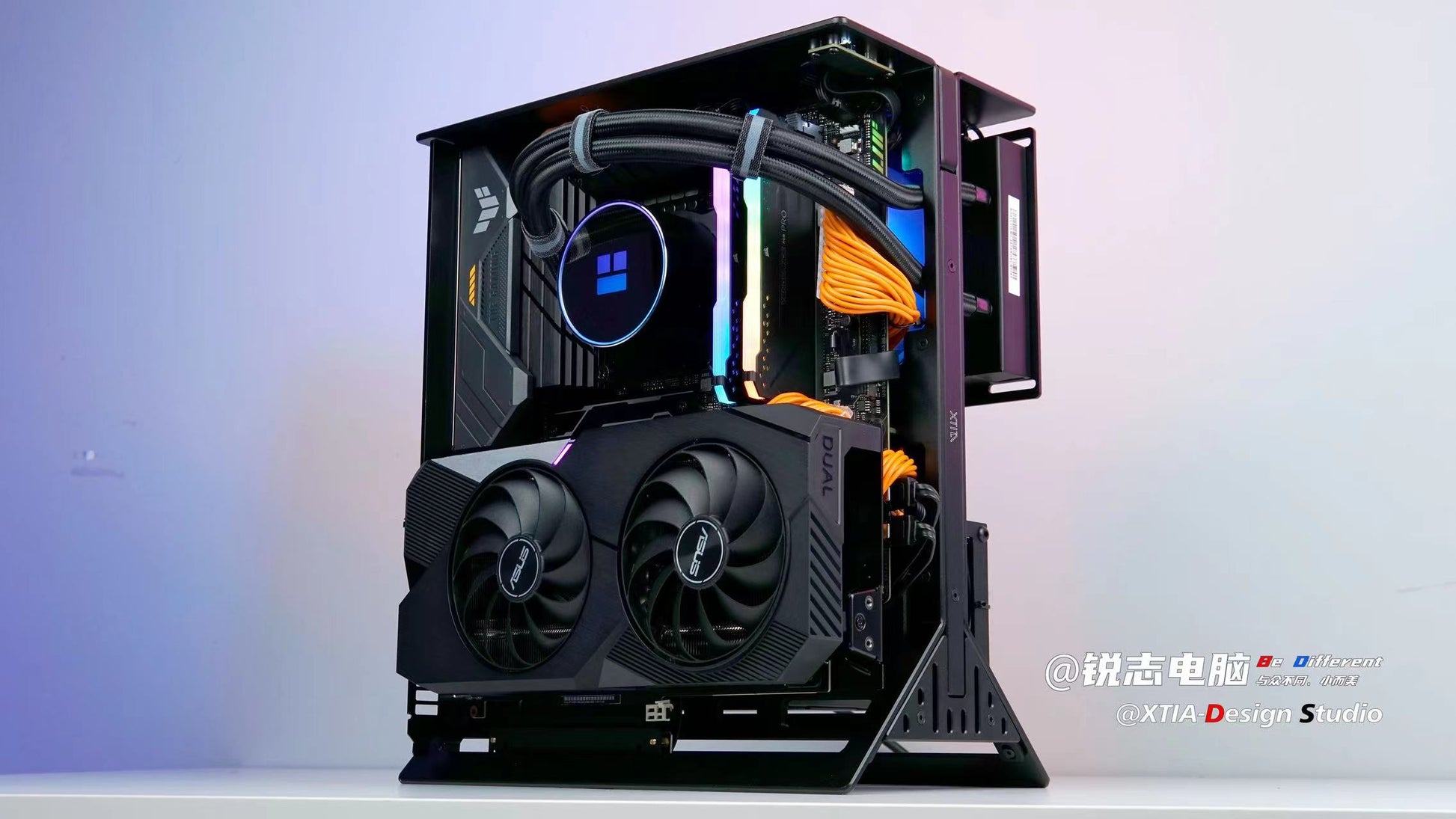

XTIA Xproto-ATX case (Pre-Order )

Regular price
$185.00 USD
Regular price
Sale price
$185.00 USD
颜色
Version

Please confirm that you have understood all the precautions before purchasing

About Shipping, Cancel the order and return policy (Nov, 2022 update) please check the link below

https://xtia.design/blogs/%E6%96%B0%E9%97%BB/about-shipping



Xproto-ATX pre-order



We ship out all XPROTO-ATX orders by November 20th. XPROTO-ATX orders starting on November 19th will ship around December 10th



1: Xproto-ATX comes with all brackets you need, there is no need to buy any additional module

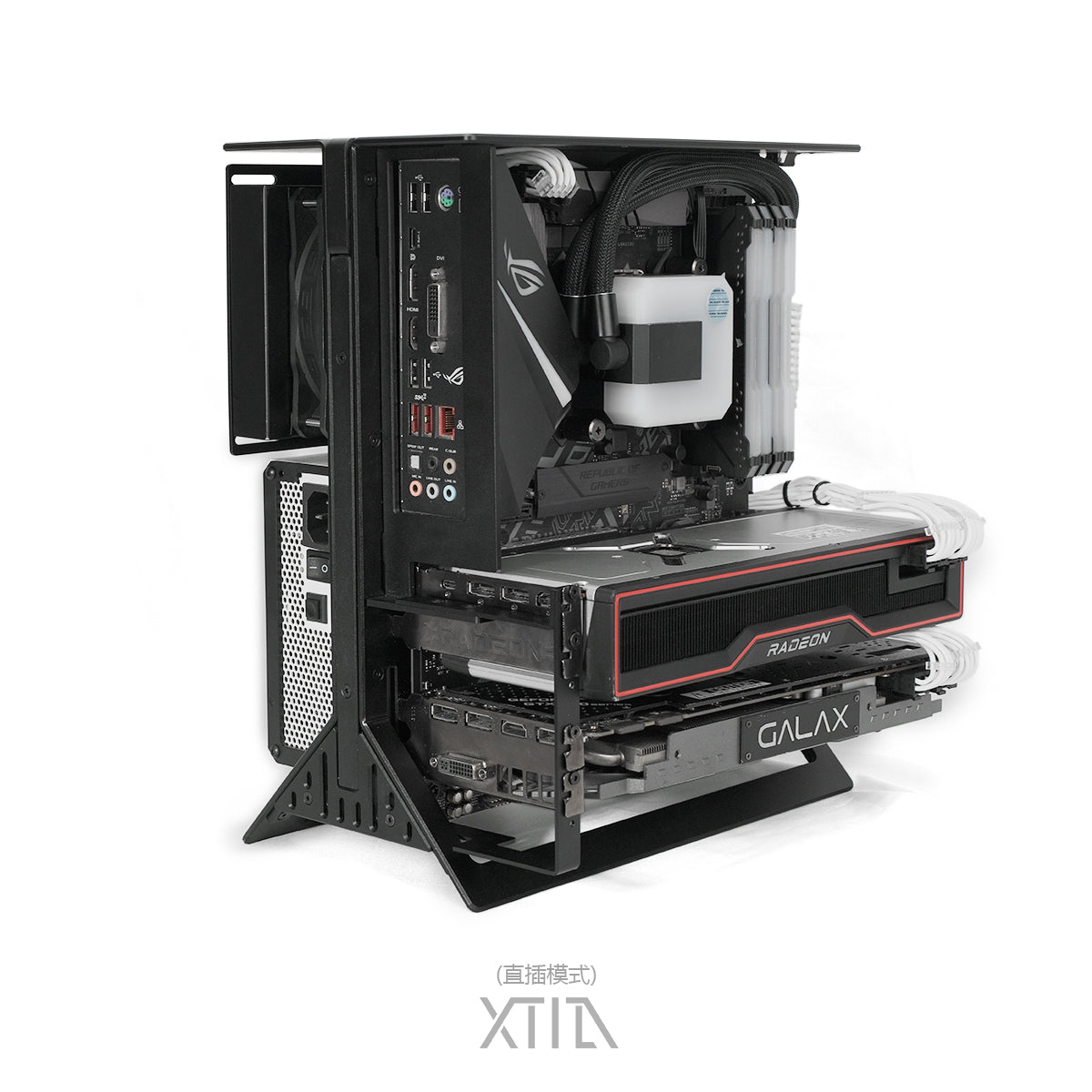

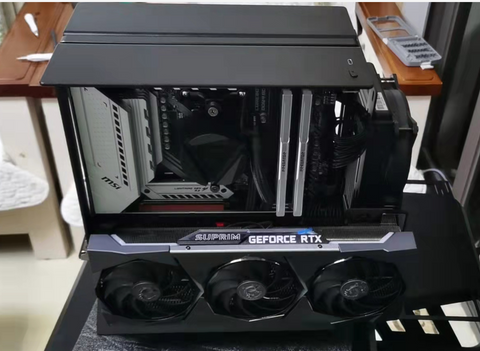

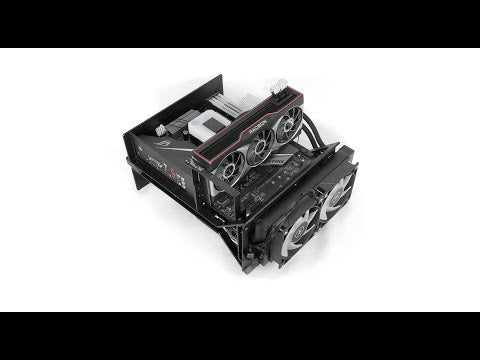

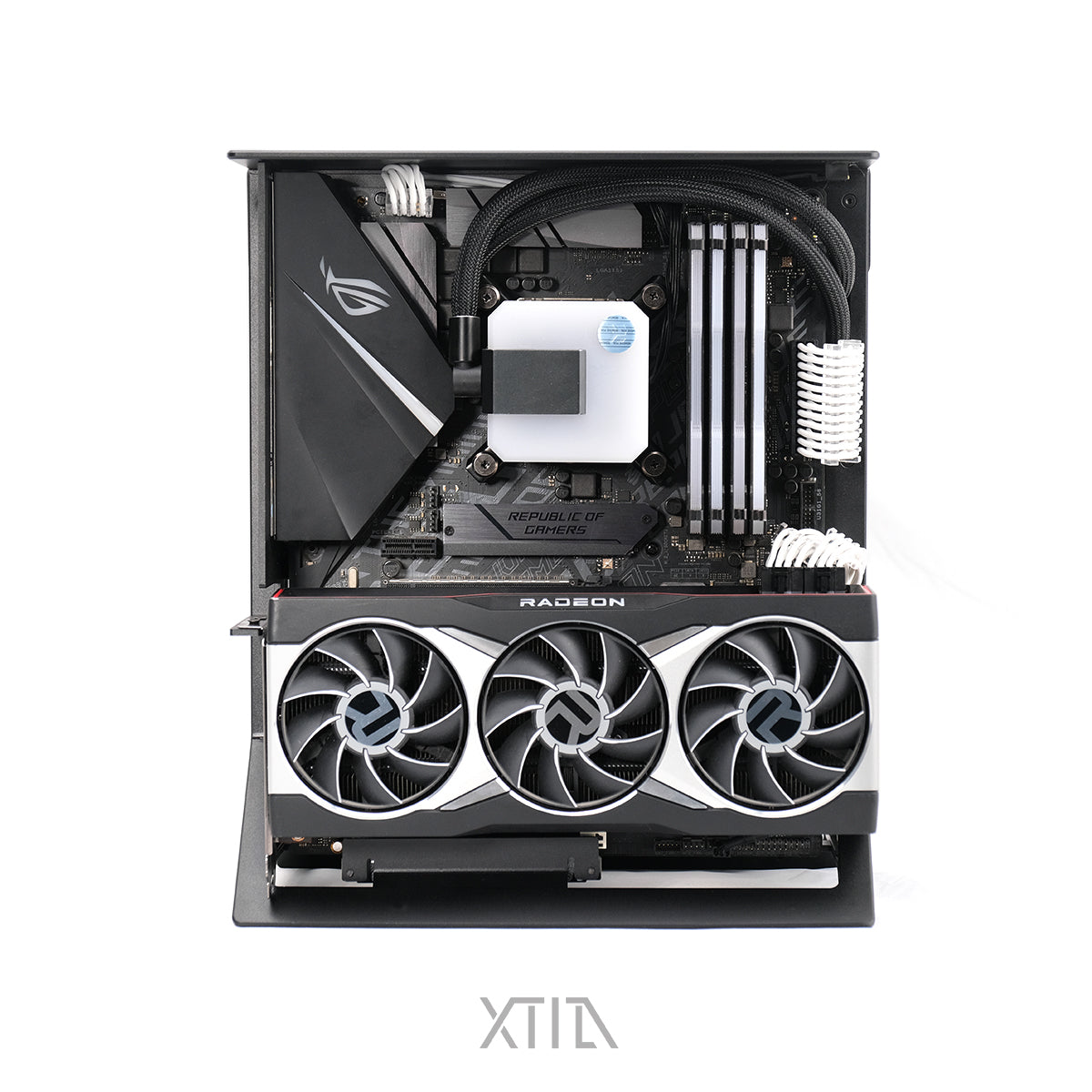

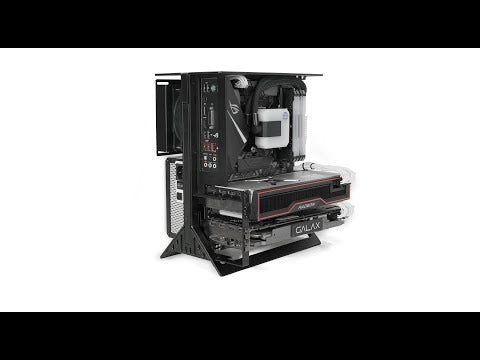

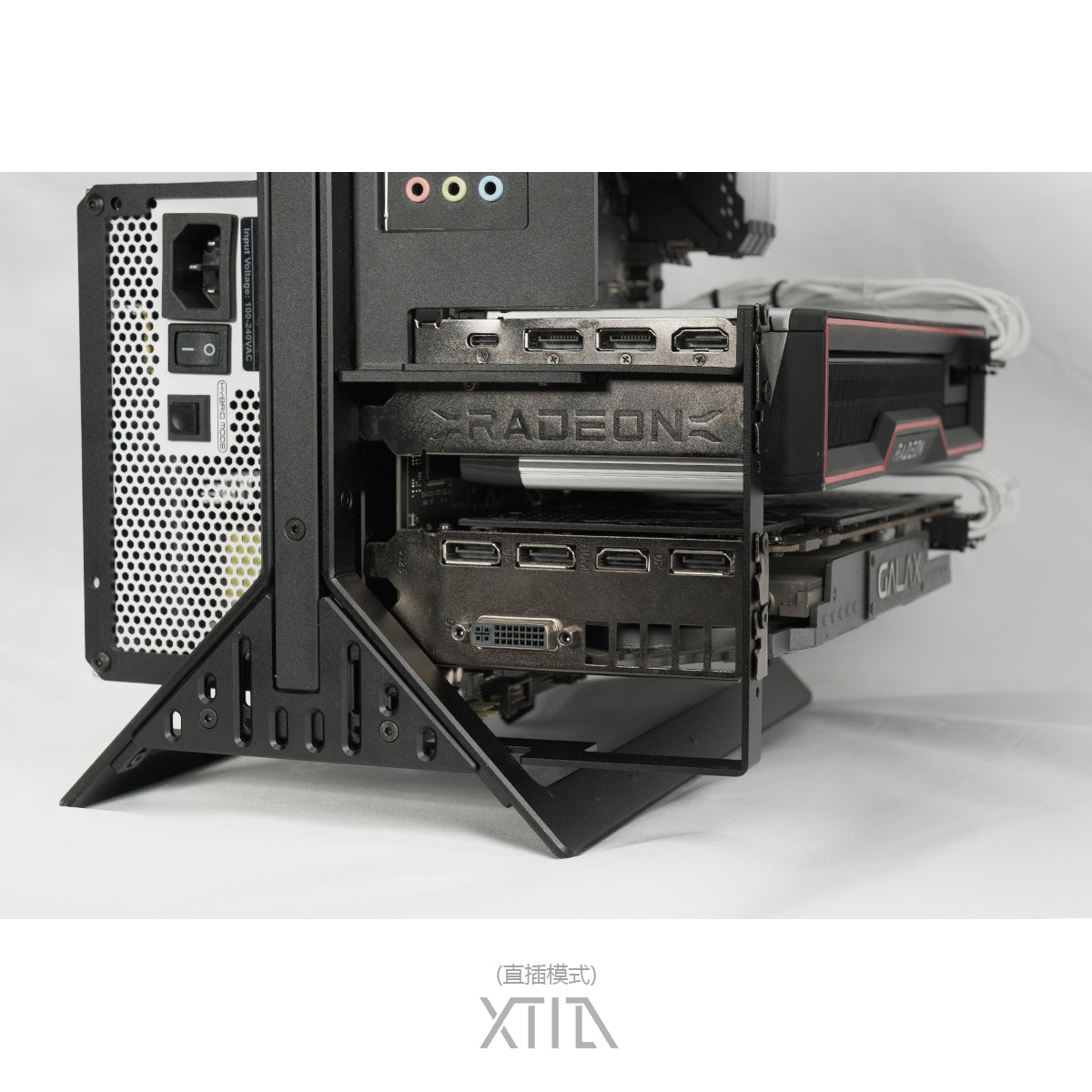

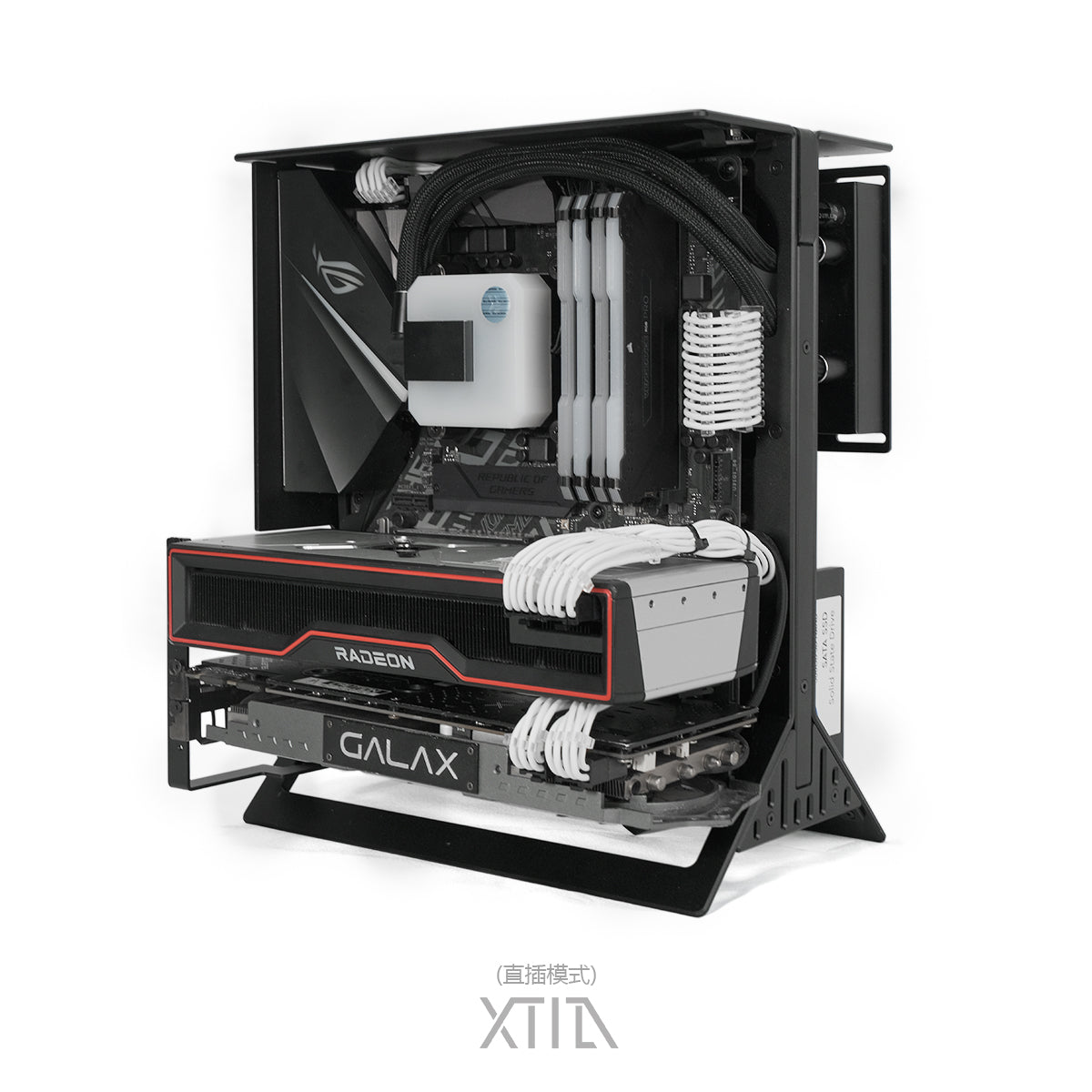

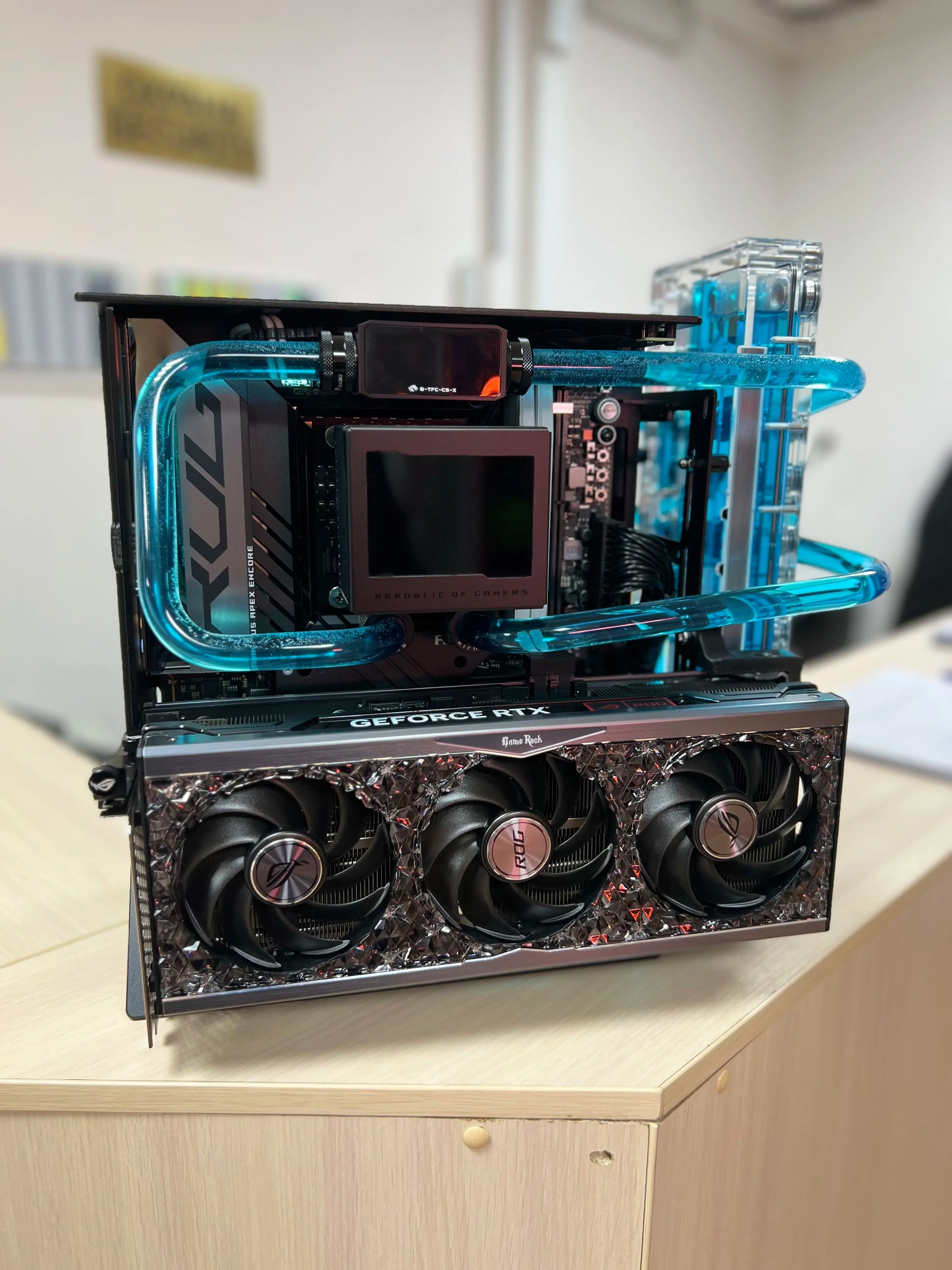

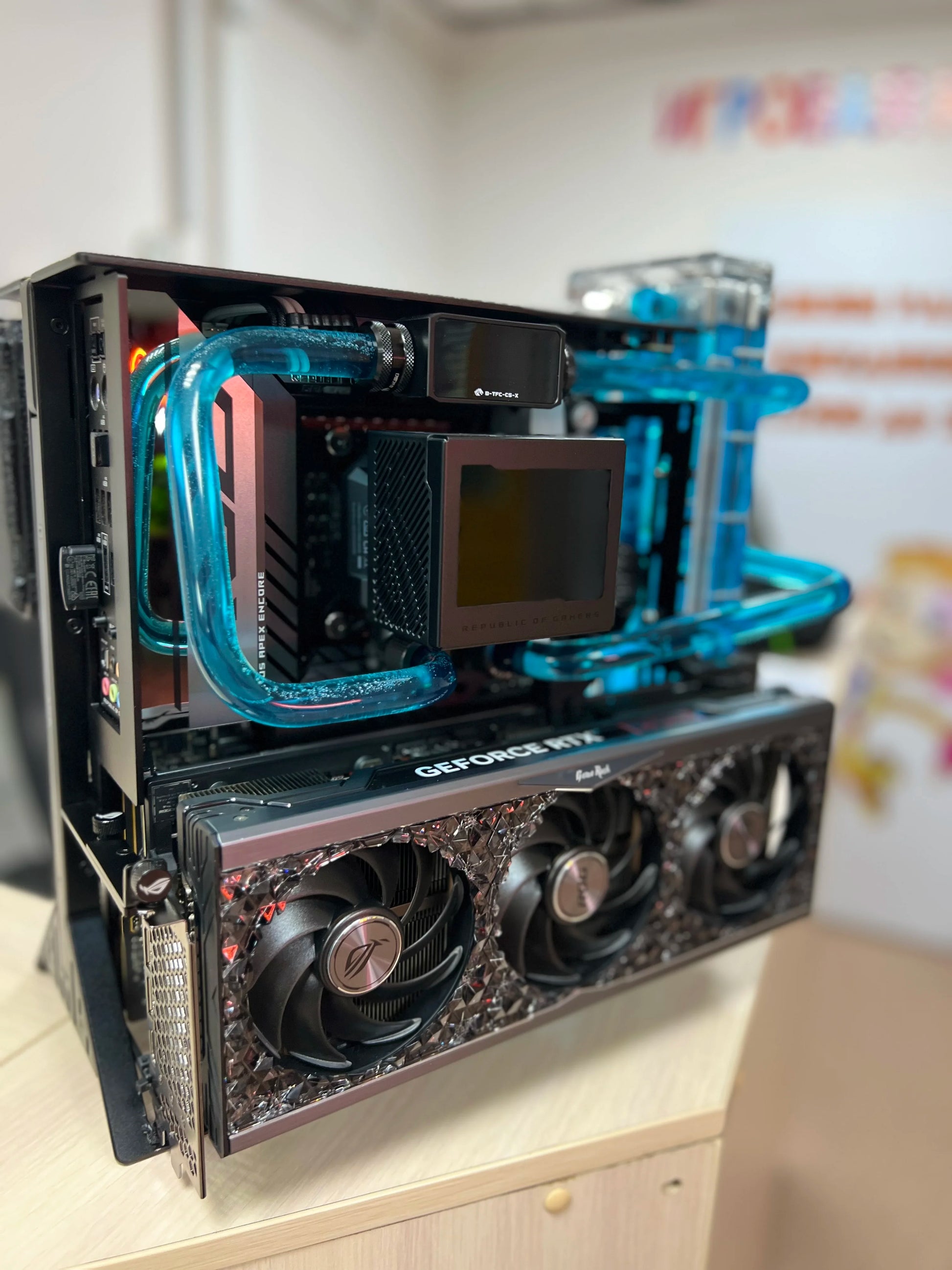

2: Vertical mode:    GPU dimension L * W* H,    W has to be less than 140 mm Or Your graphics card may be conflicting with memory

According to this size situation. For all existing 4090 except 4090 FE, the VERTICAL MODE of XPROTO-ATX may not support

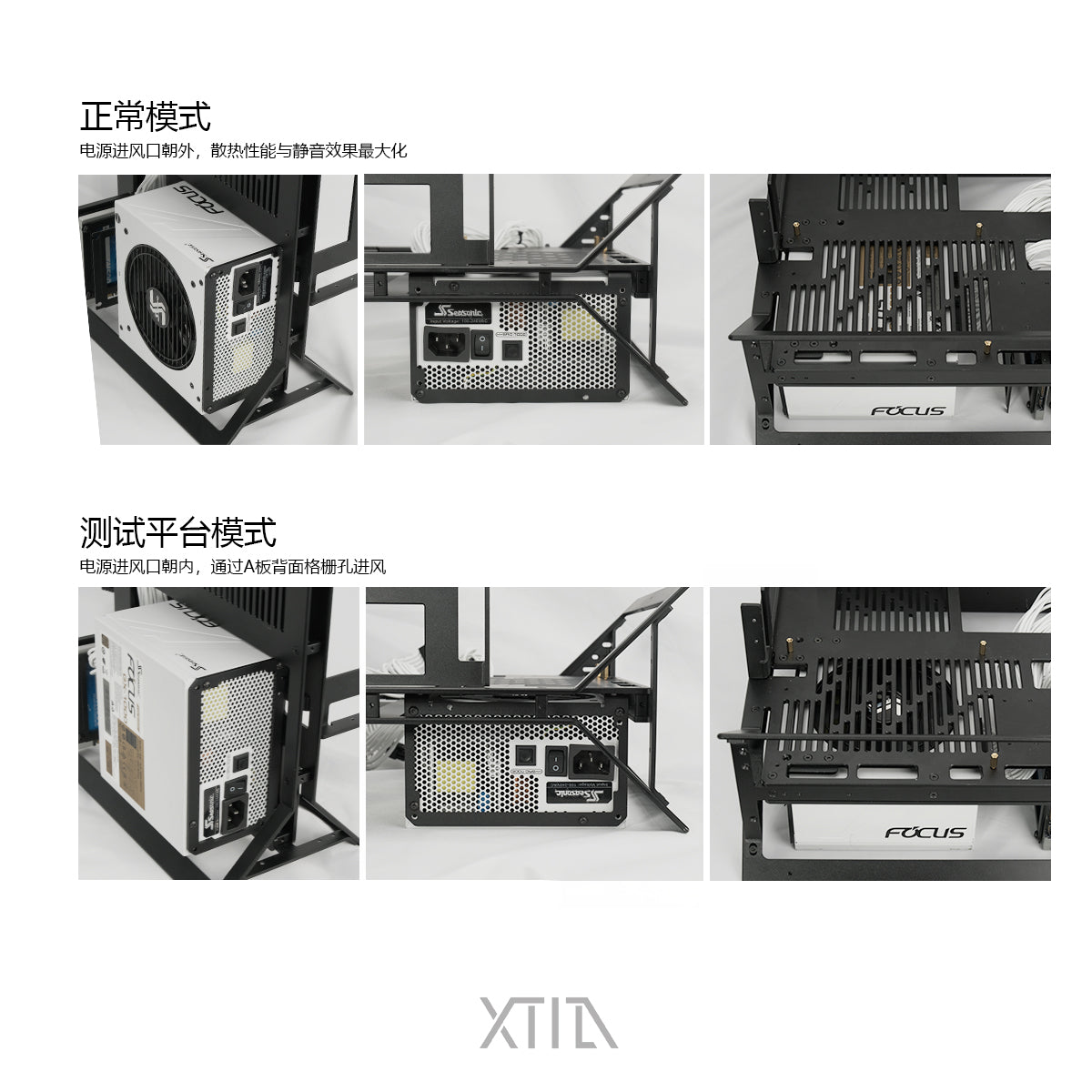

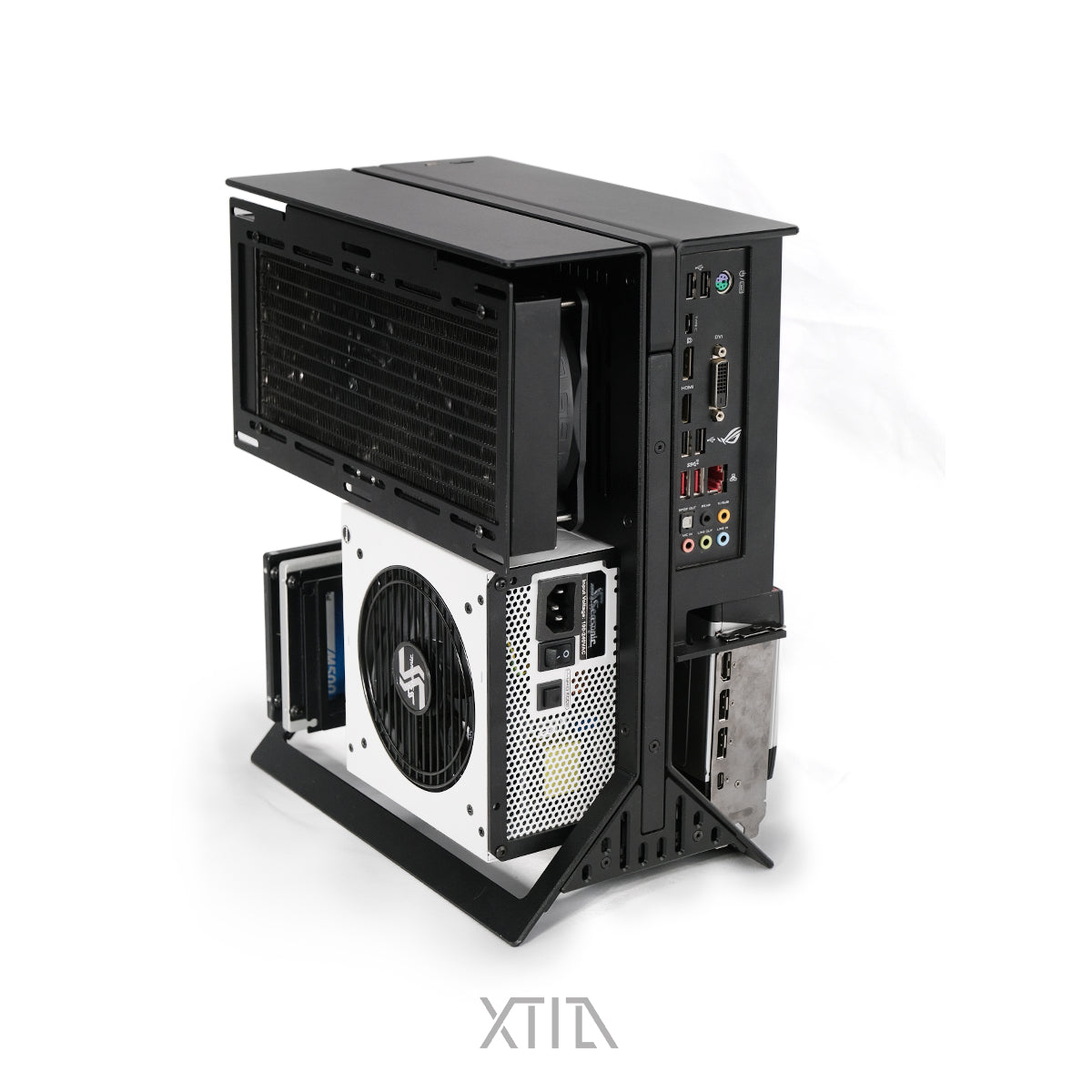

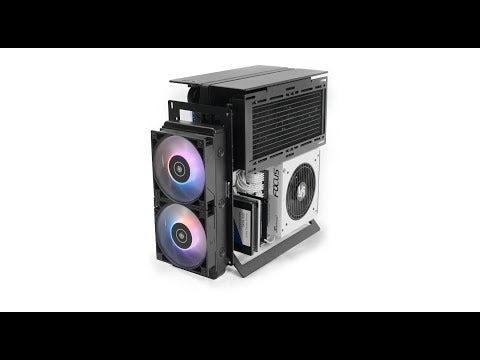

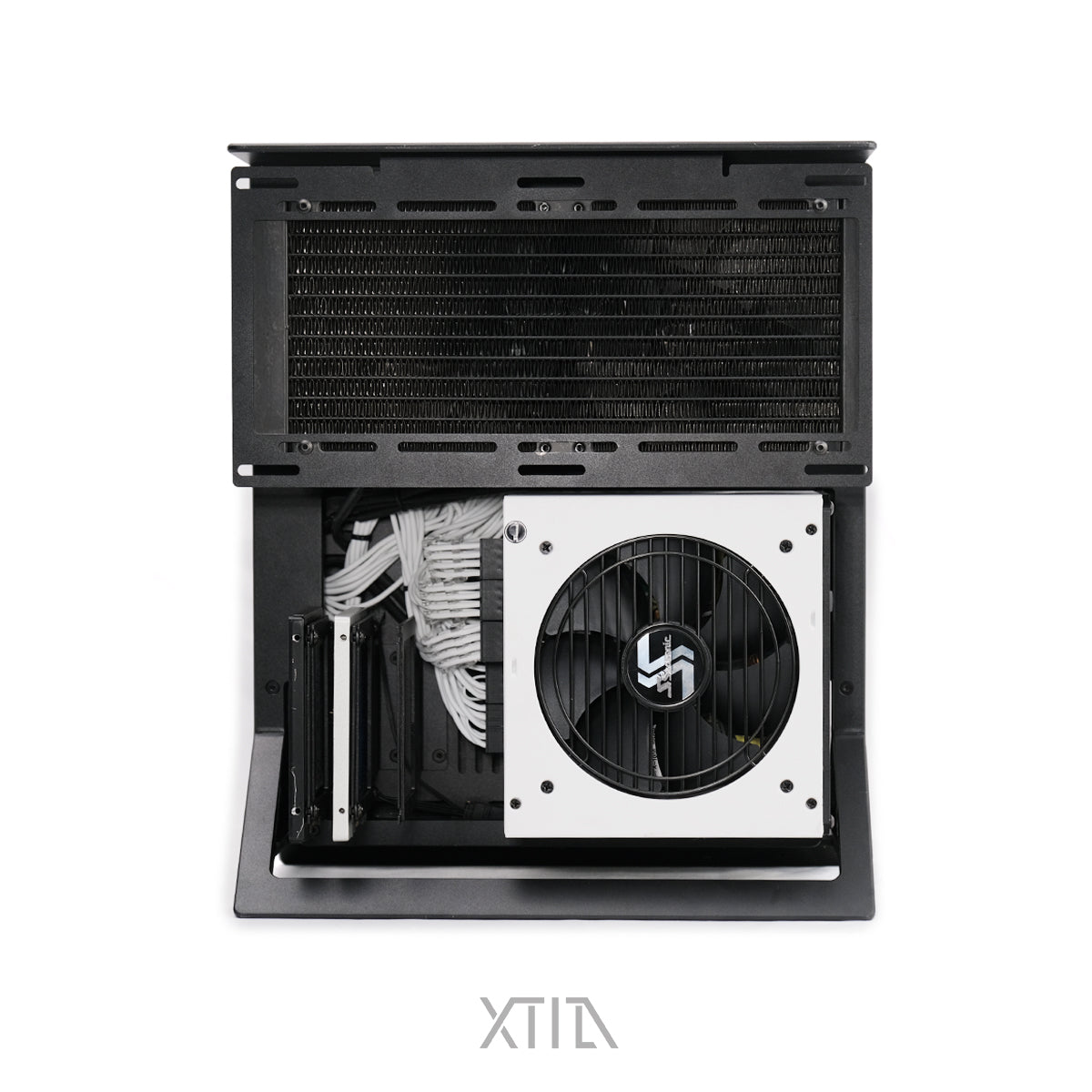

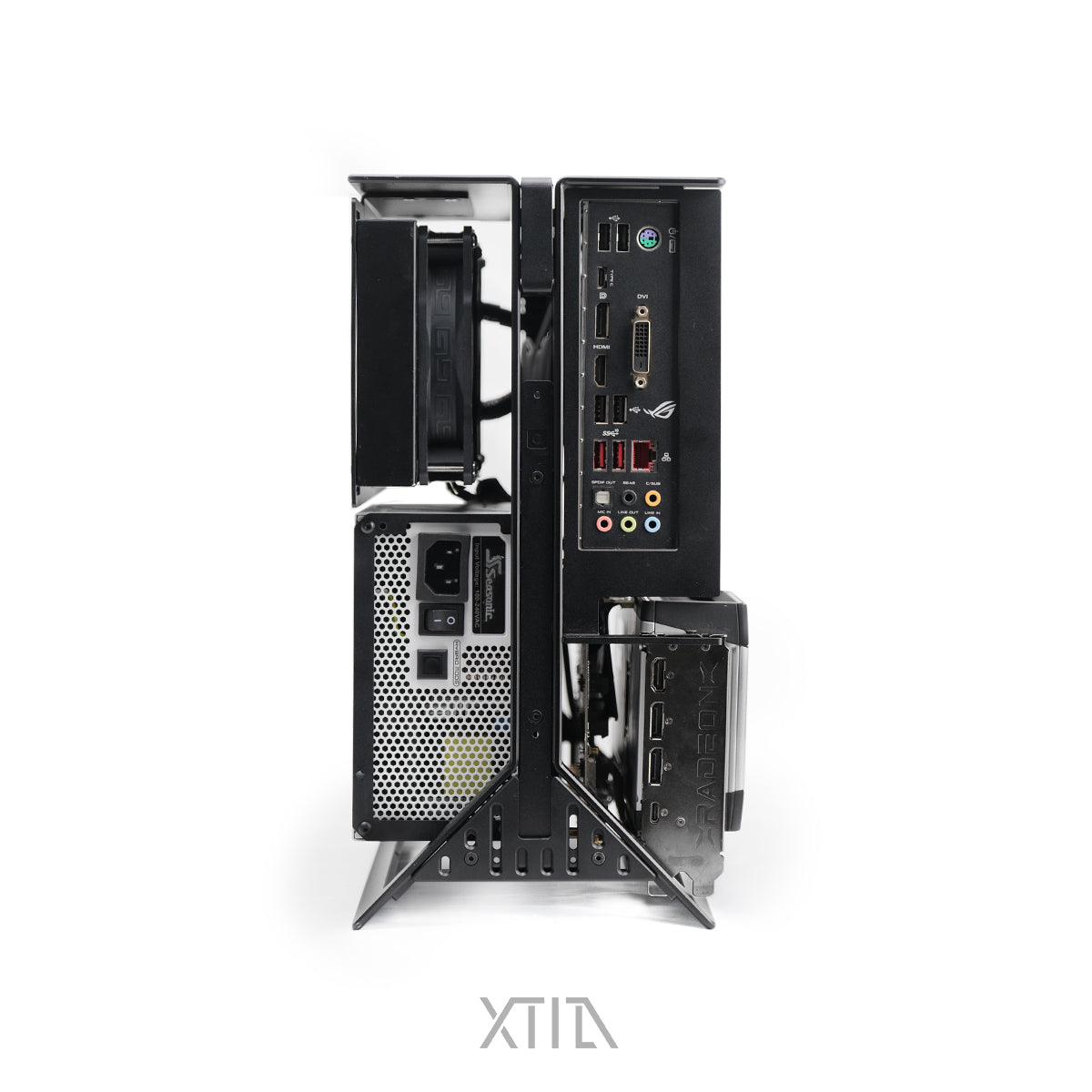

3: 3.5 The mechanical hard disk and power supply share the installation position. If you need to install a 3.5-inch hard drive, please use a power supply with a length of less than 17CM(for one 3.5hdd)or less than 15cm( for 2 3.5hdd)    The number of hard drives that can be installed depends on the size of the power supply

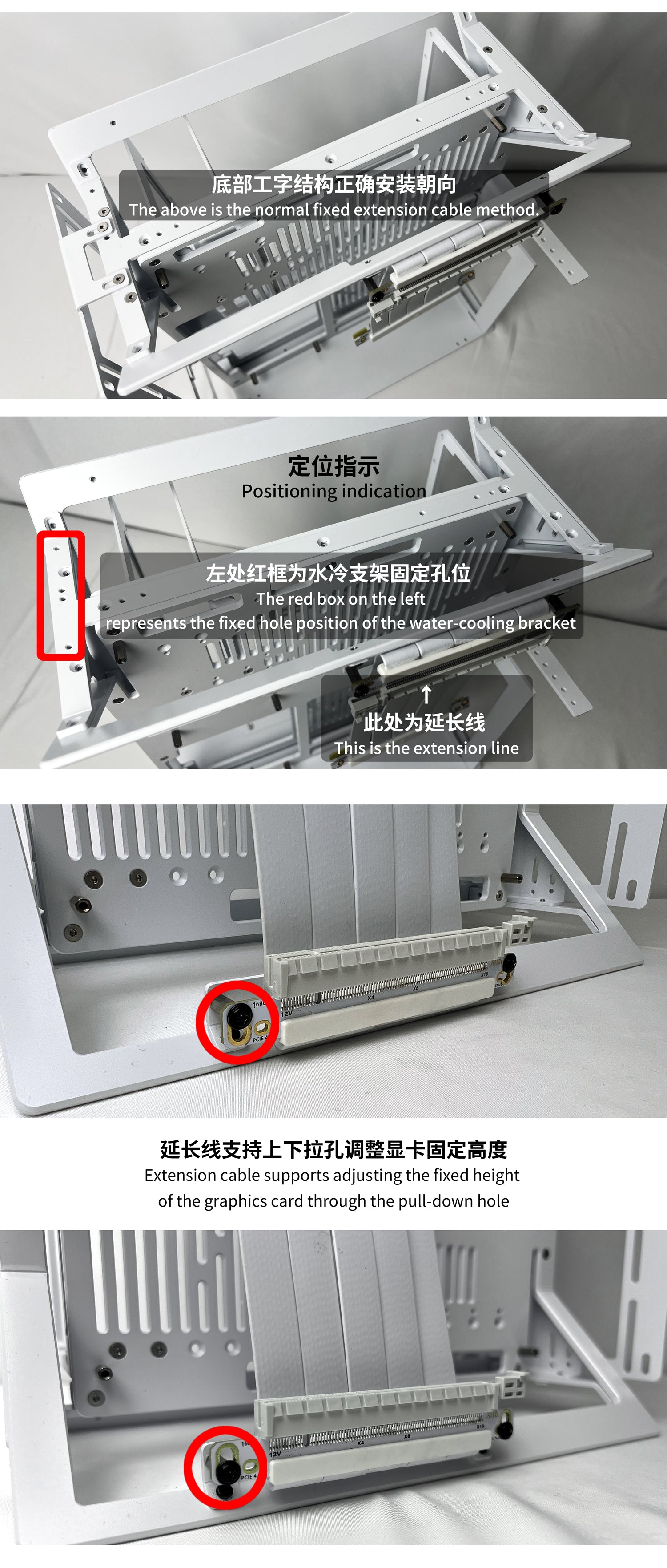

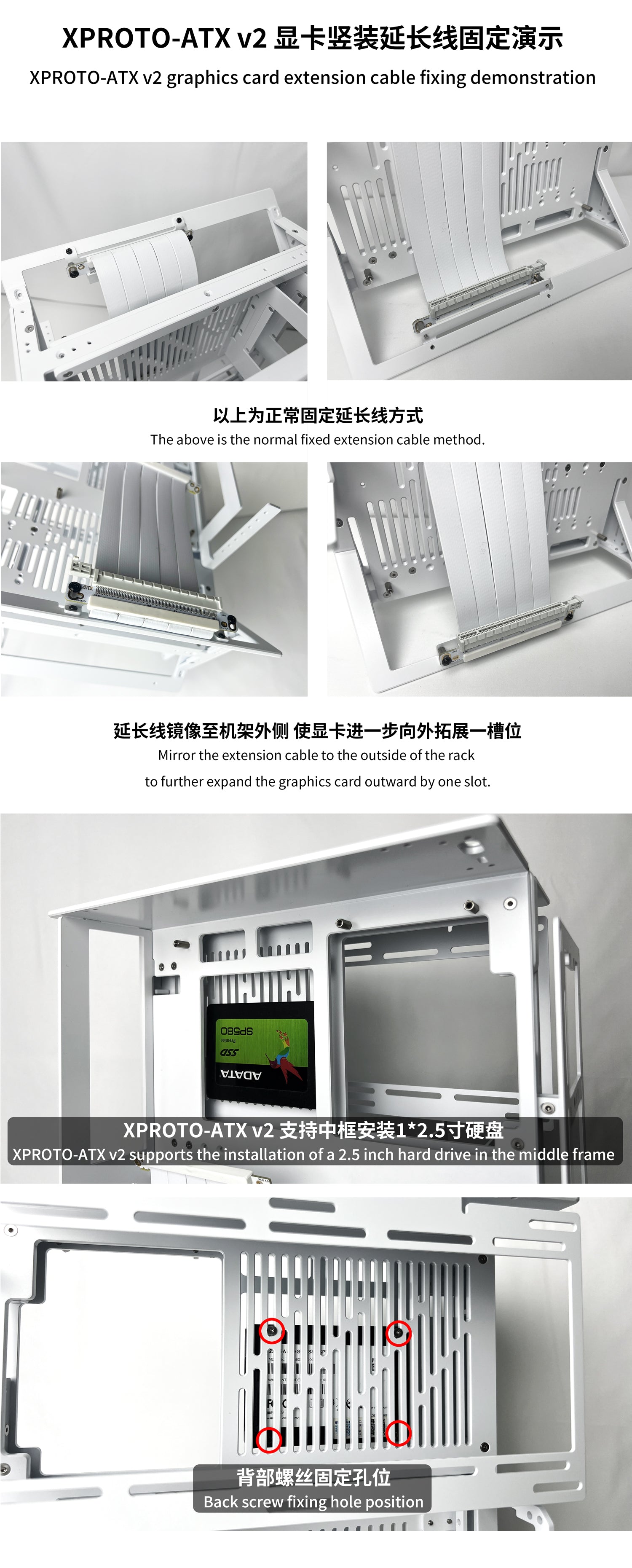

Standard version:   Come with PCIe 3.0 riser cable  18CM single reverse(, can fit ATX/ITX/MATX/DTX mobo)

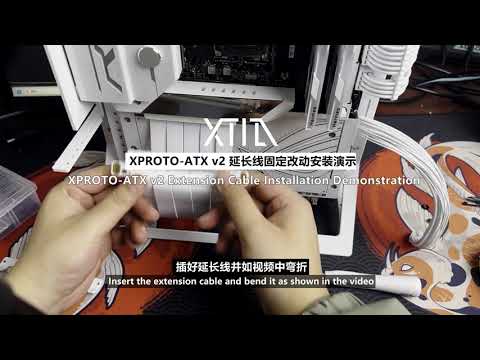

Advanced version:  Upgrade to JHH PCIe 4.0 riser cable 18CM single reverse,  ( There are differences from the video tutorial. The end of the graphics card needs to be folded back 180 degrees to use)

The purpose of this adjustment is to allow an extension cable to be compatible with all motherboards.

All version comes with all brackets ( Including PCI-E riser bracket)





The latest version is modified:

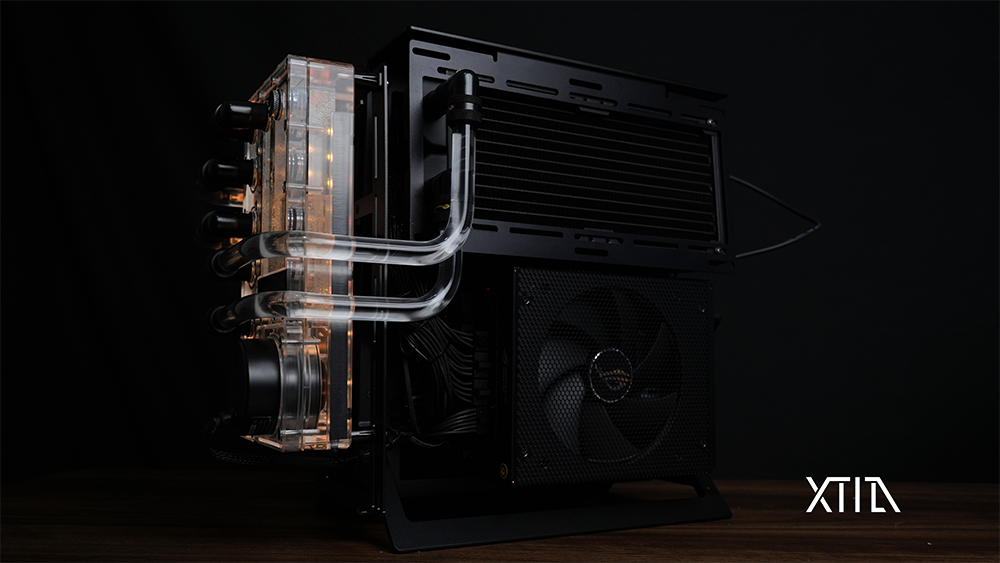

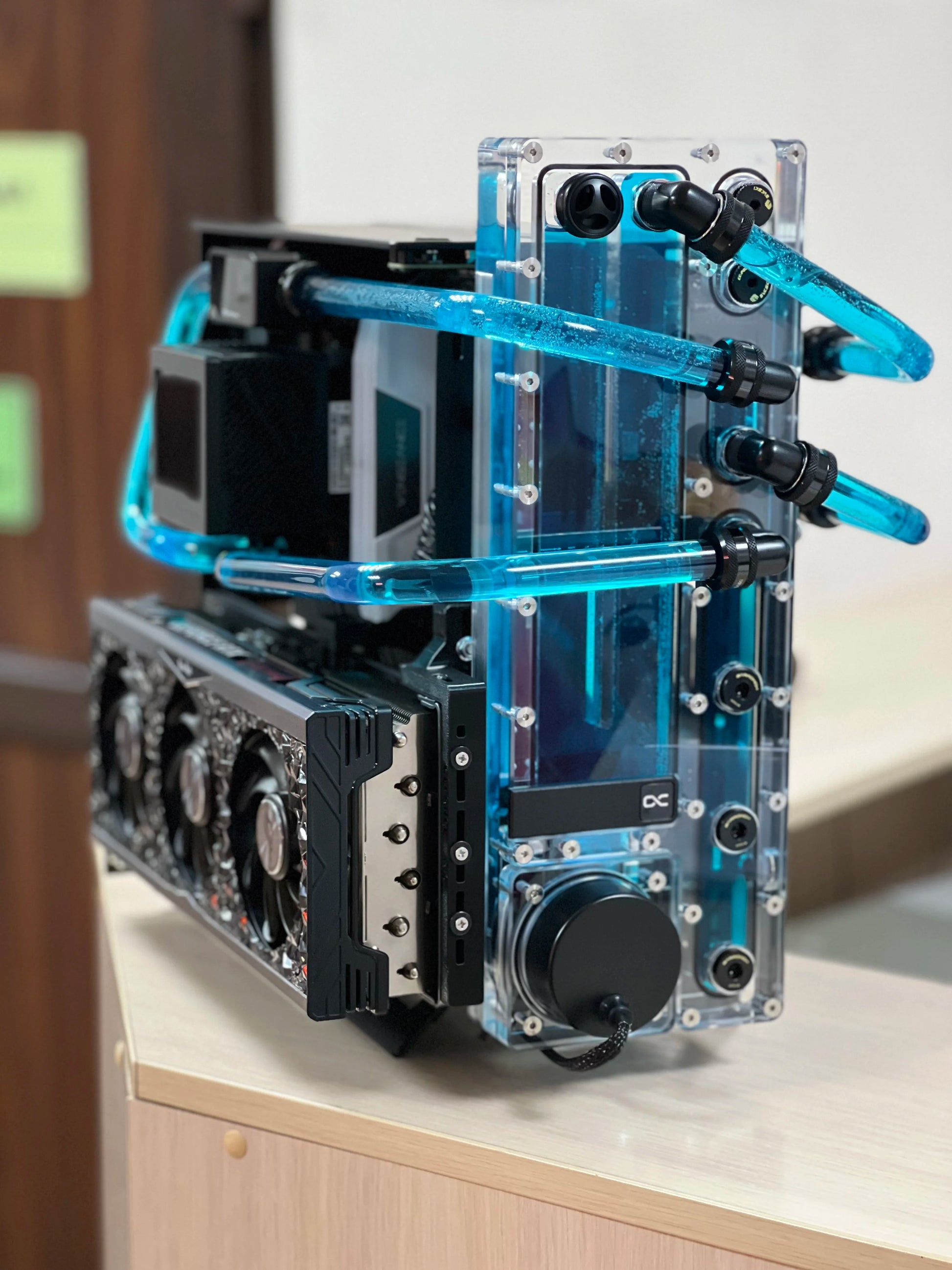

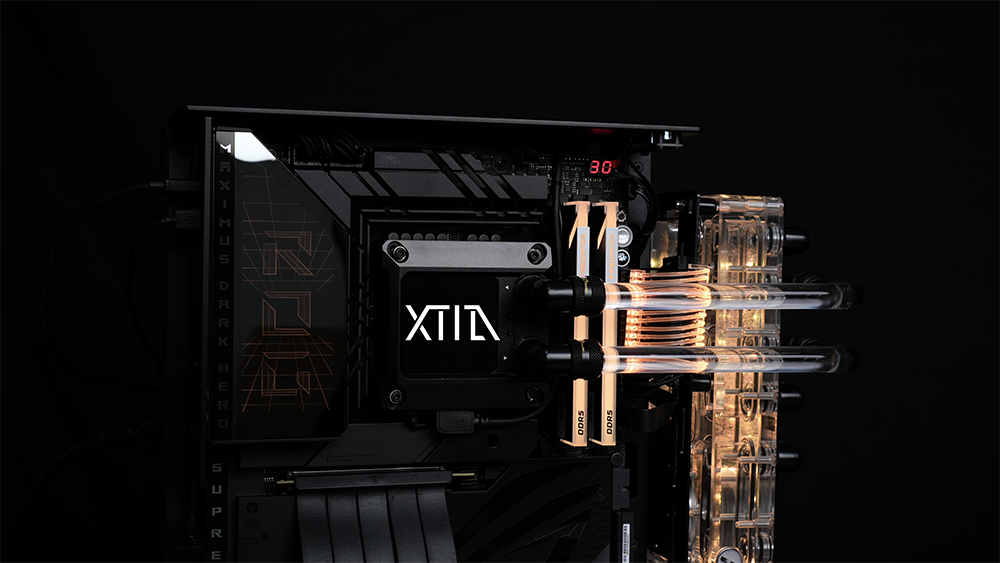

1:Provide additional water pump bracket (need to use a power supply within 14*15CM)

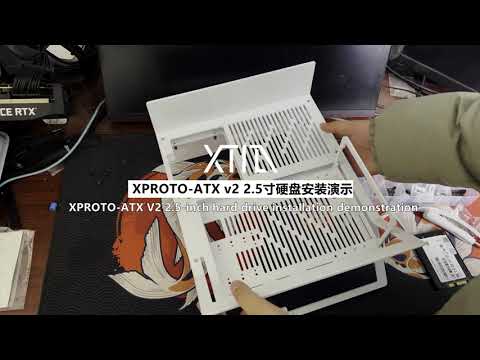

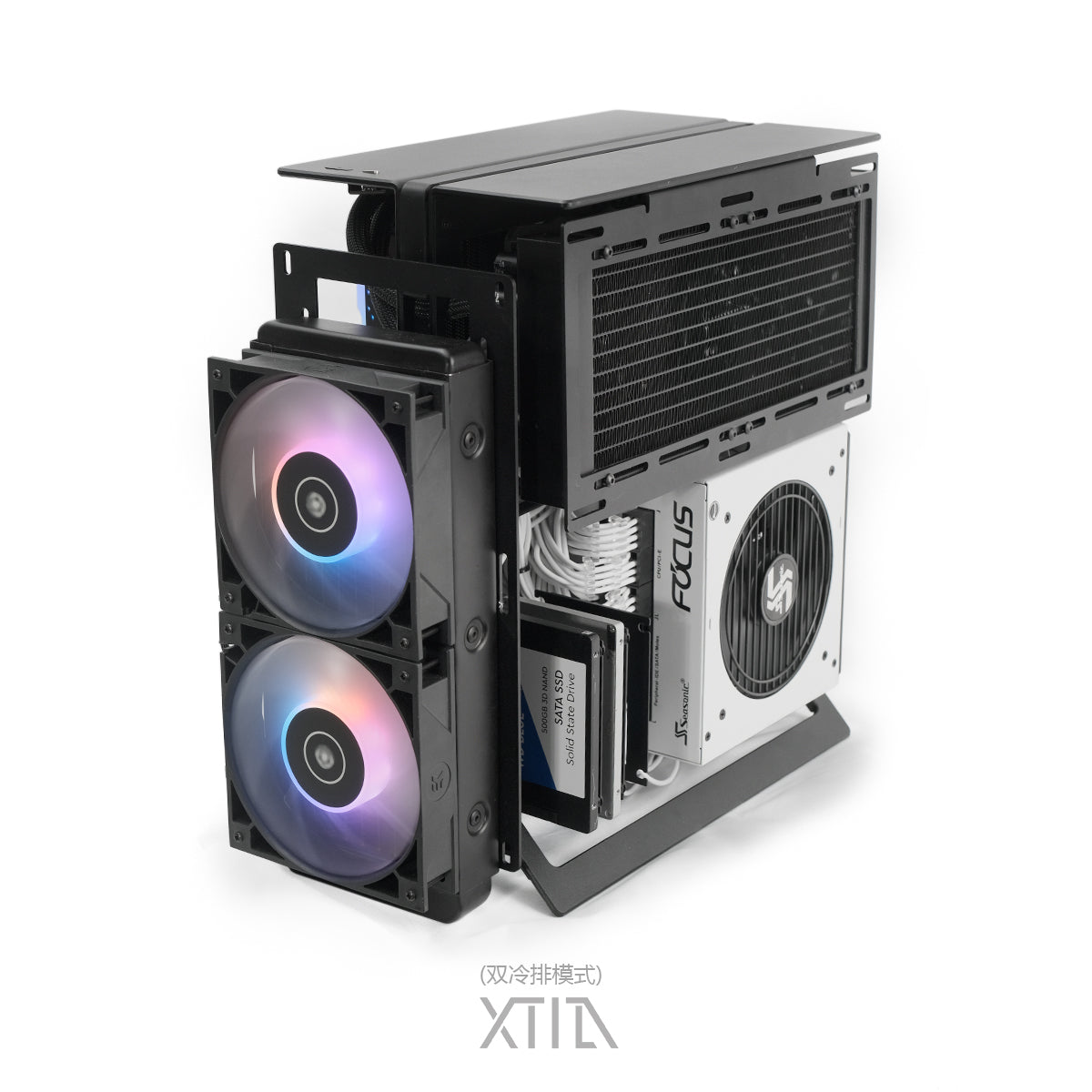

2:Zone C (between AIO and motherboard) provides 1-2  2.5 SSD mounting positions, the original 2.5 SSD brackets is upgraded to two 3.5HDD brackets(The specific number of 3.5 hard drives that can be installed is determined by the length of the power supply)

https://xtia.design/blogs/%E6%96%B0%E8%81%9E/the-tutorial-of-sata-bracket-for-xproto-atx

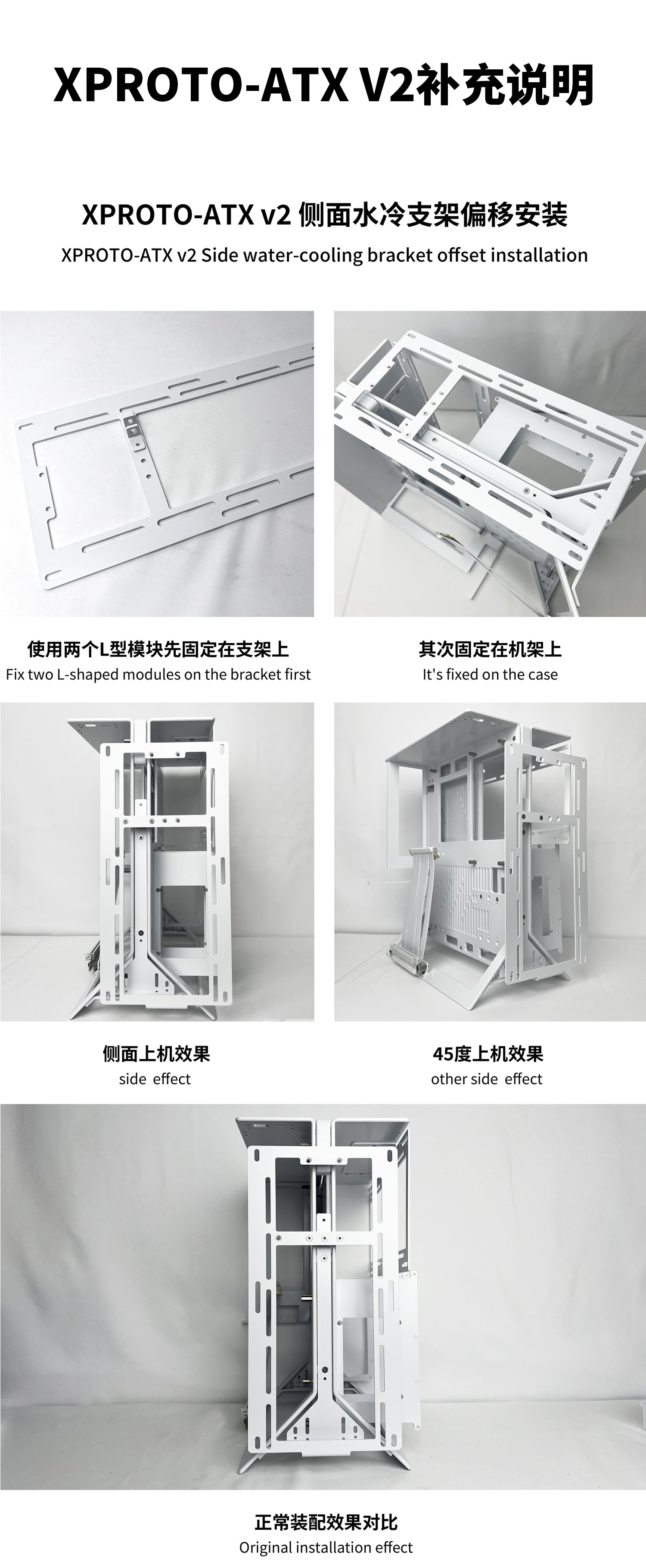

3:The side AIObracket  can be installed behind the graphics card to solve the problem of inconsistency after the installation of an overly long graphics card







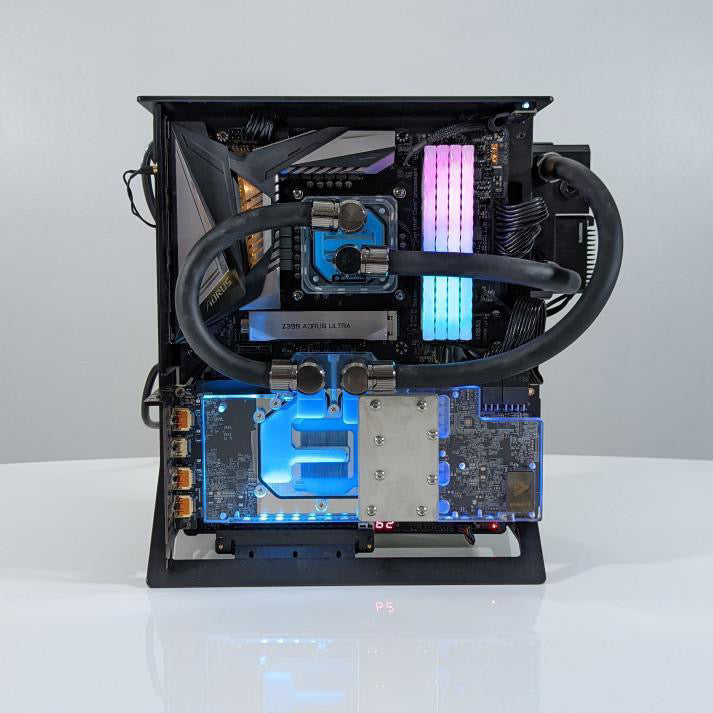

We have been thinking about how to use the SFF concept to design an ATX layout, to reduce the hardware requirements of the butterfly structure



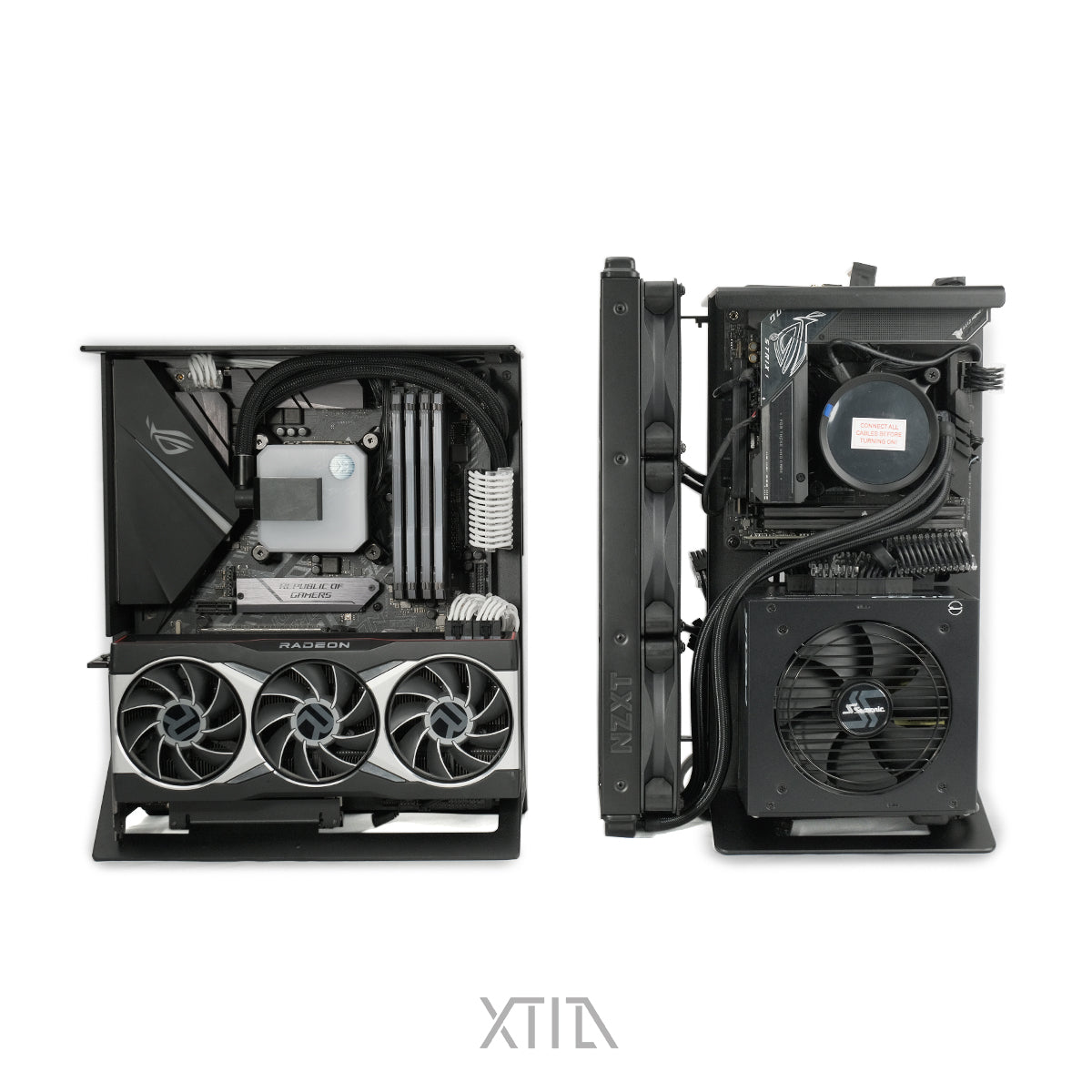

Features



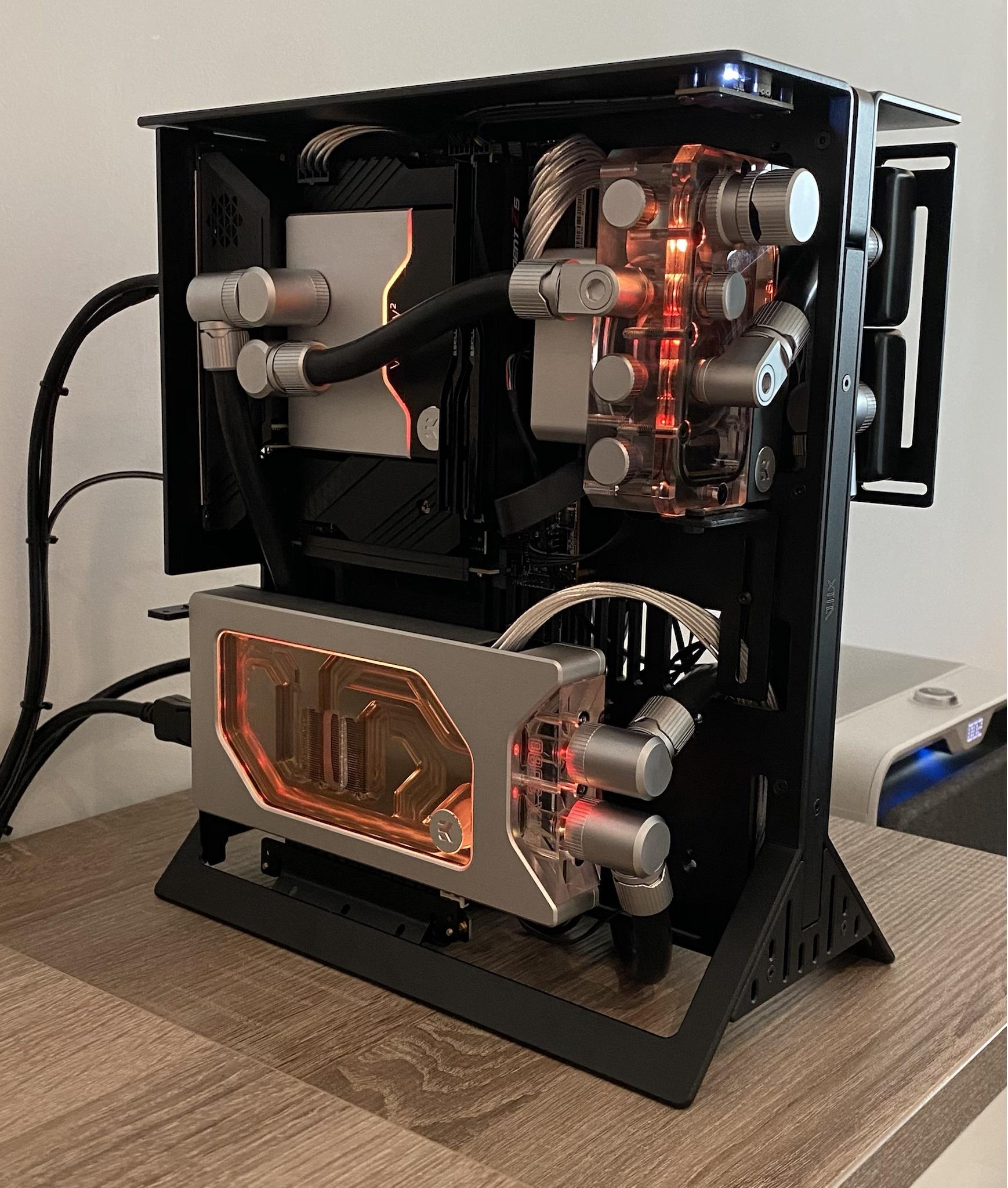

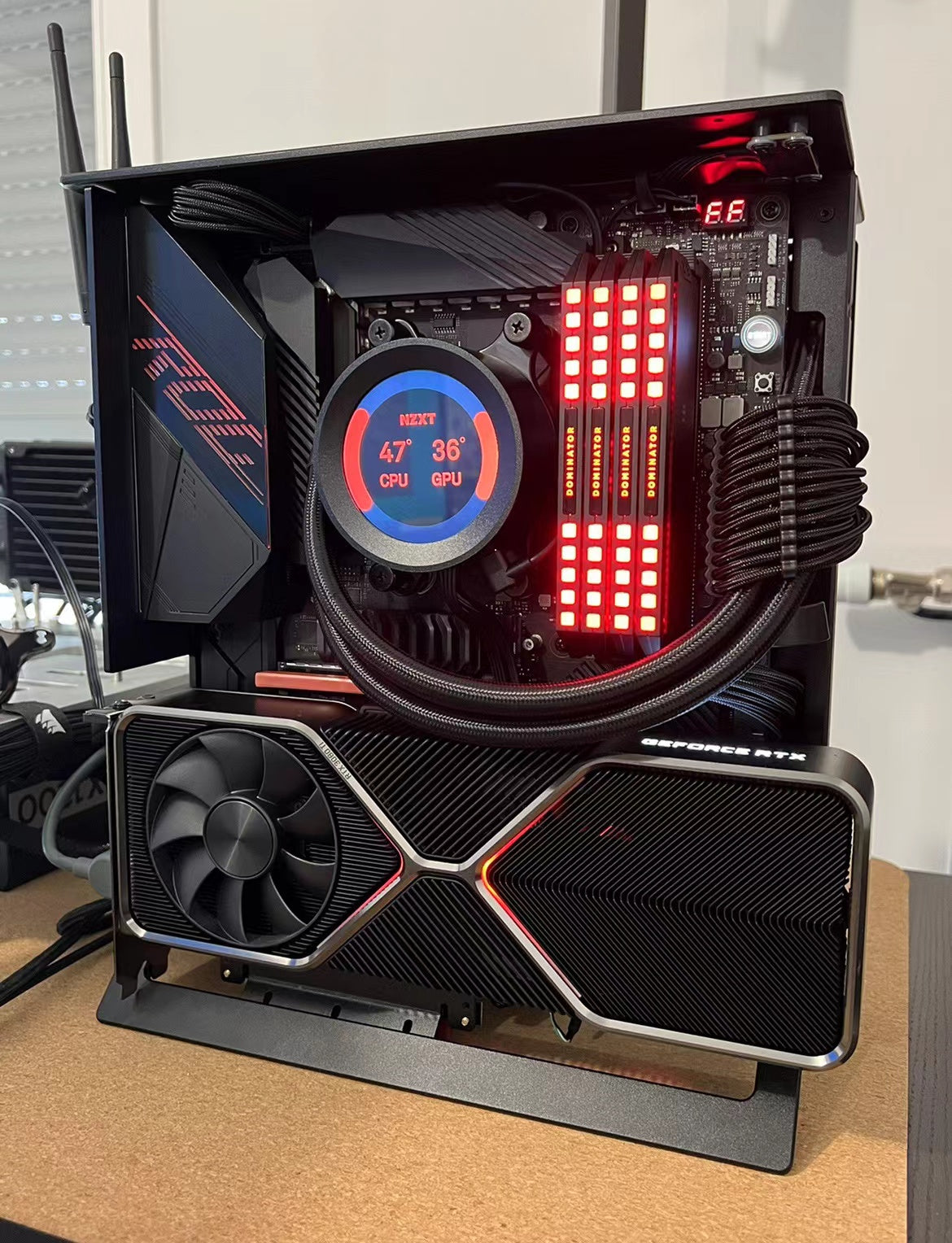

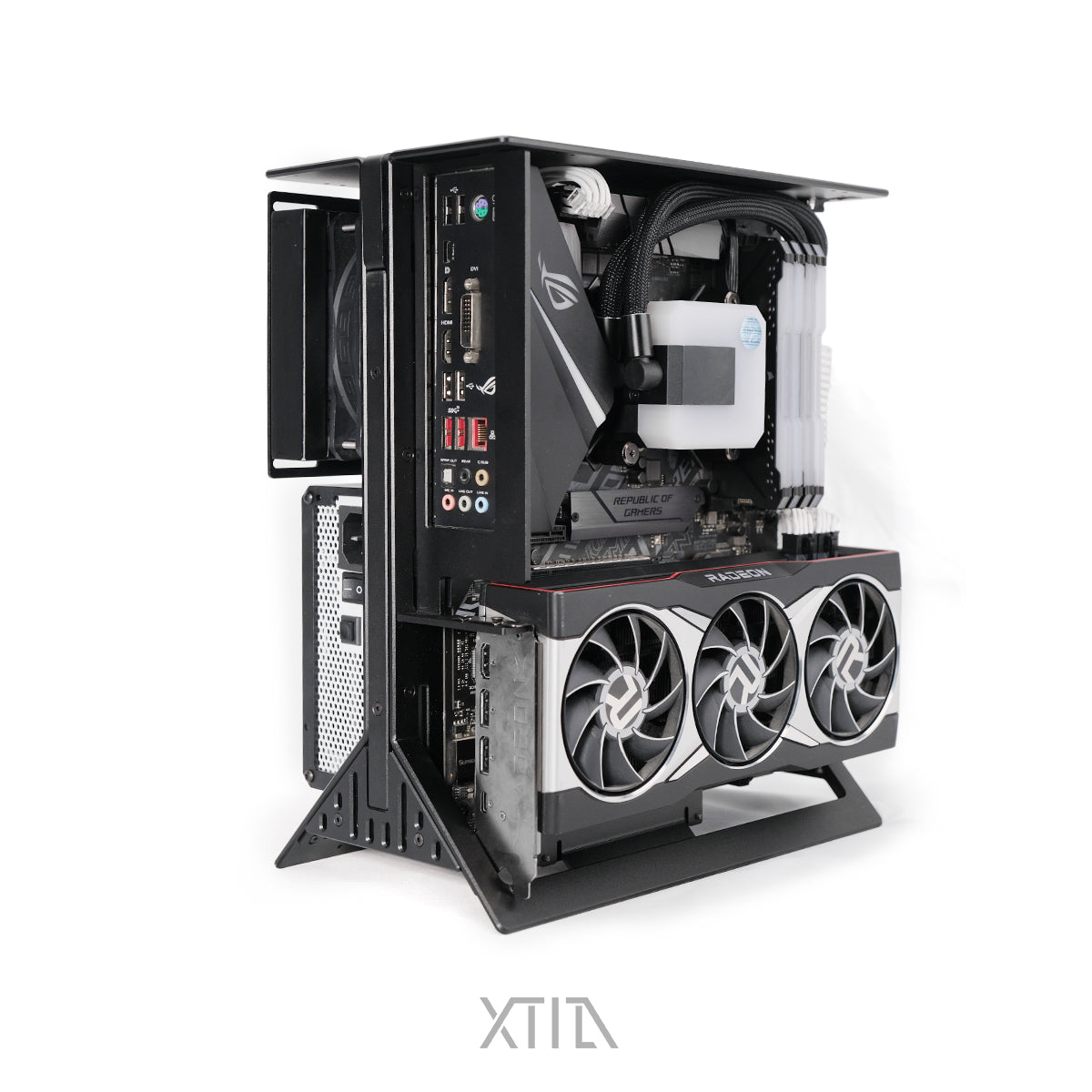

1:Compatible with ATX /MATX / ITX / DTX  motherboard

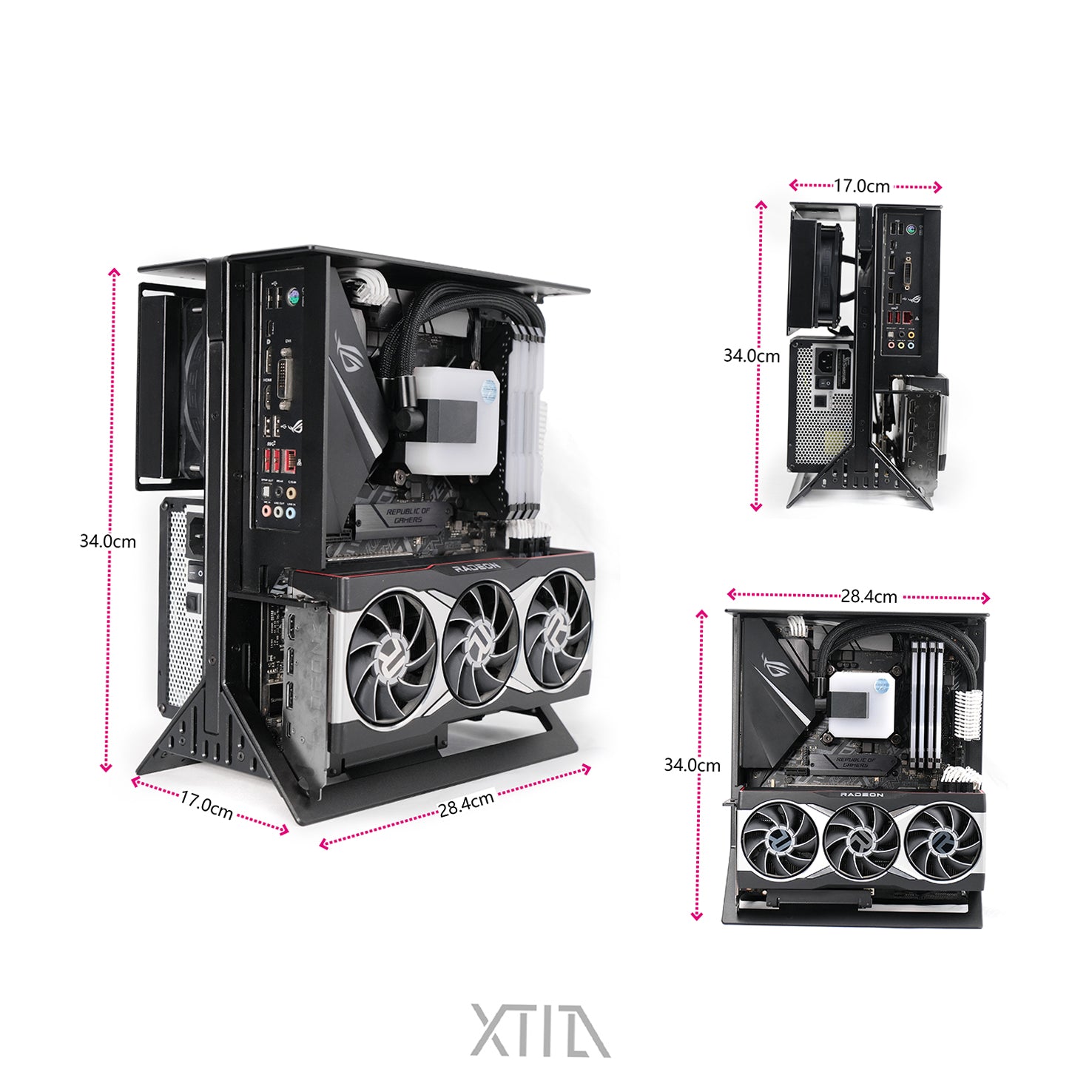

2:The smallest volume *(Need to use 240 water cooling)is less than 17L

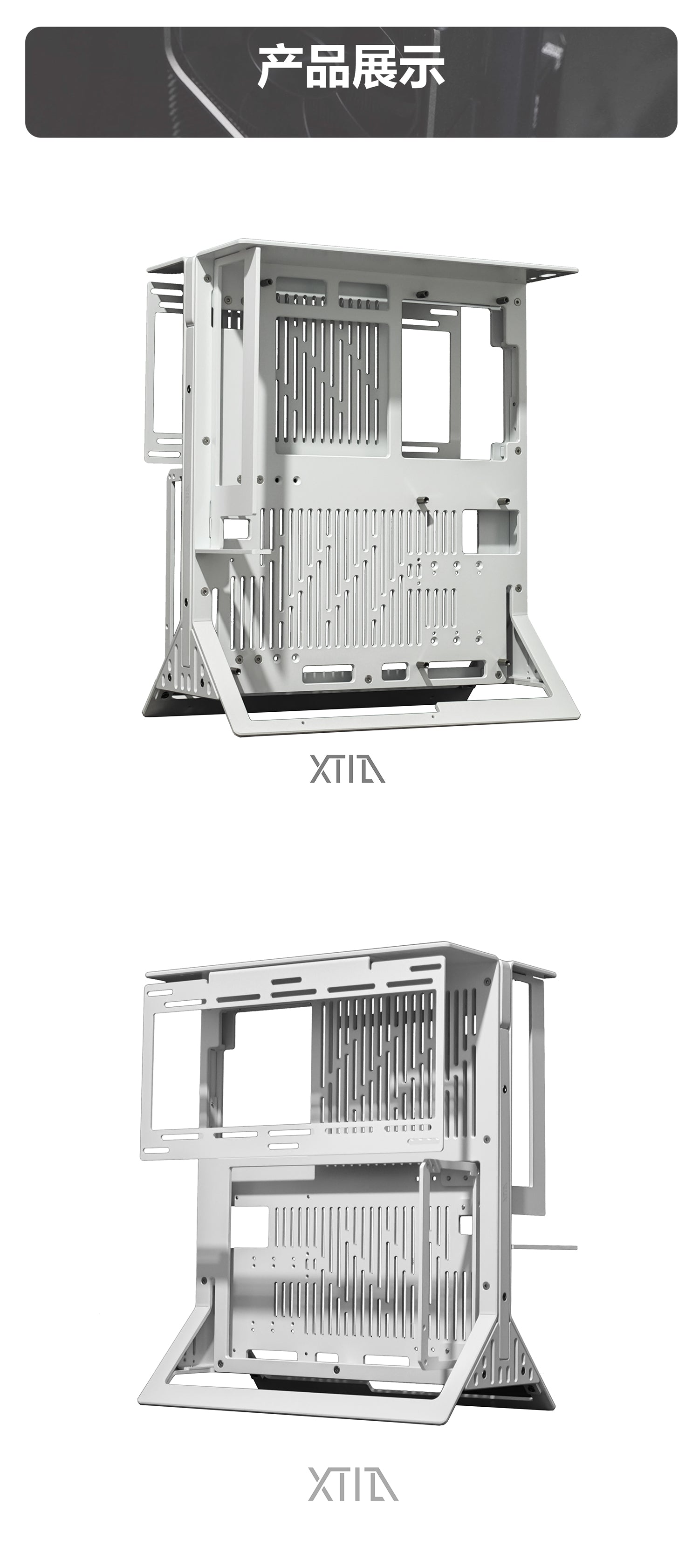

3:Continuation of the XTIA butterfly structure 2.0 design

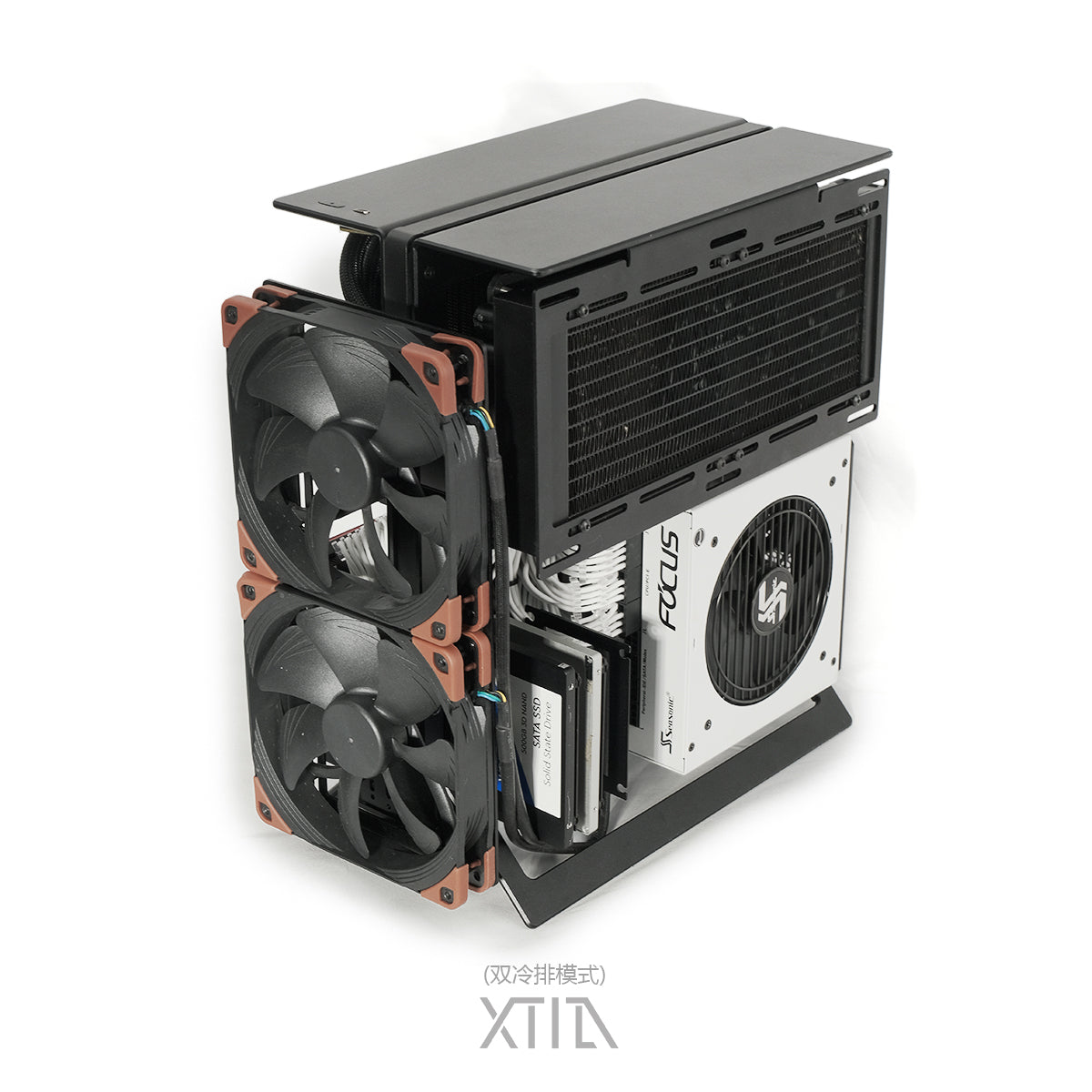

4:Comes with hidden handle design and all brackets( HDD brackets and side AIO bracket)

5:All aluminum CNC machined (No steel parts) ,Total weight less than 2KG

6:  Handle/ All brackets in the images  are included,no need to buy extra




Compatible hardware

MoBo:            ATX/MATX/DTX      (Not compatible with EATX motherboard)



PSU:             All size ATX PSU.  SFX PSU needs SFX to ATX adapter

Storage:       Maximum 2.5*3 /3.5 *2 HDD/SSD   Related to PSU length +M.2  (Come with 3.5 HDD bracket)

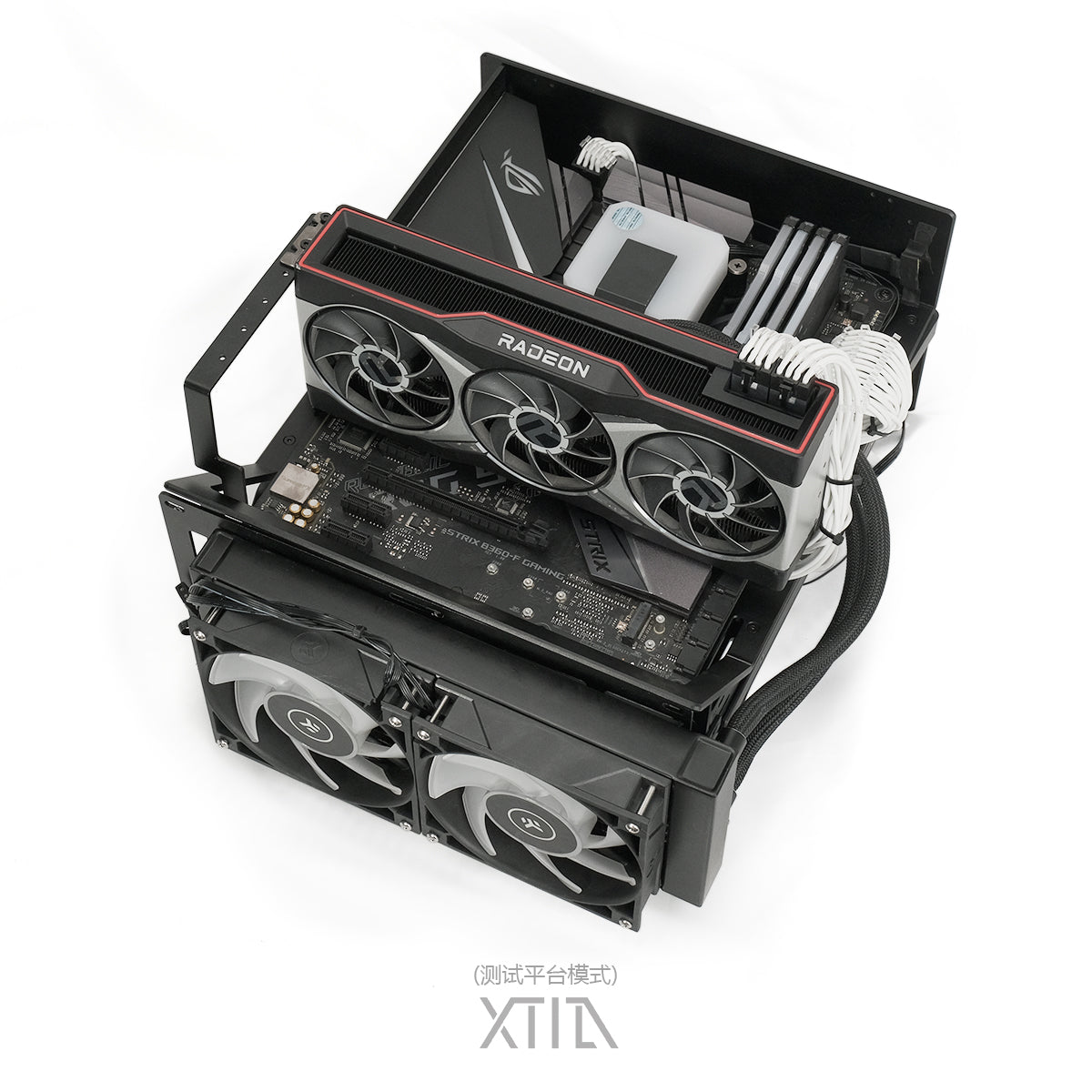

Water Cooling:      240 AIO(Recommend,Back,Side),   280AIO (Back,Side), 360AIO (Side),420AIO (Side)

                       Note:280 AIO installed behind the motherboard will protrude from the chassis





About all-new design SATA bracket:



https://xtia.design/blogs/%E6%96%B0%E8%81%9E/the-tutorial-of-sata-bracket-for-xproto-atx



Now you can fix 3.5HDD and 2.5HDD( In the C-zone)




Warning: Some purchasers have reported that customs duties were charged. Depending on your country's import regulations, you may have to pay customs duties or a similar import tax. If you have special requirements to declare, please let us know in your order.


About Shipping, Cancel the order and return policy (June 2022 update) please check the link below

https://xtia.design/blogs/%E6%96%B0%E9%97%BB/about-shipping
